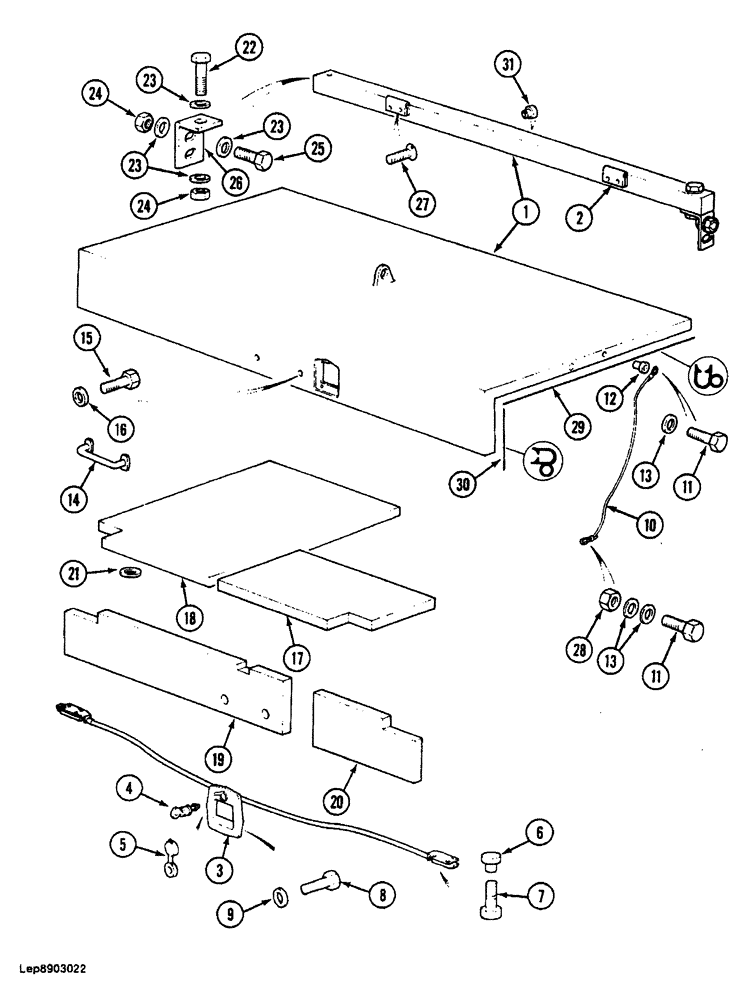

Запчасти Case 688 (9-016) - ENGINE UPPER ACCESS COVER (09) - CHASSIS

1

P8143845

HOOD ASSY.

COVER AND HINGE ASSEMBLY - engine upper access, Includes: Ref. 2

1шт.

2

P736667

HINGE

- cover

2шт.

P3337440

PLUG

- plastic, grease

2шт.

3

P1352042

LOCK ASSY

LOCK ASSEMBLY - upper access cover, Includes: Ref. 4 and 5

1шт.

4

P152083

LOCK, CYLINDER

CYLINDER -lock

1шт.

P1352009

KEY

- lock

2шт.

5

P2340499

DOOR COVER

PROTECTOR - cylinder

1шт.

6

P35466

RIVET

RETAINER - bolt, sleeve type

8шт.

7

P433853

SCREW

BOLT - hex, 5 mm x 20 mm

8шт.

8

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

4шт.

9

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

10

P2531358

CABLE

- upper access cover

1шт.

11

P133884

SCREW

BOLT - hex, 8 mm x 35 mm

2шт.

12

P35422

RIVET

RETAINER - bolt, sleeve type

3шт.

13

P3528794

WASHER

SPACER - bolt, 6 mm thick

1шт.

14

P1352041

HANDLE

- cover lift

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

16

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

17

P4241443

FOAM

PAD - insulation, access cover, center

1шт.

18

P4241442

FOAM

PAD - insulation, access cover, right-hand

1шт.

19

P4241449

FOAM

PAD - insulation, access cover, front right-hand

1шт.

20

P4241450

FOAM

PAD - insulation, access cover, front left- hand

1шт.

21

P3036998

CLIP,ELECTRICAL

RETAINER -, Serial Range: pad-cover

10шт.

22

P933816

SCREW

BOLT - hex, 10 mm x 95 mm

2шт.

23

P3528795

WASHER

SPACER - bolt, 7 mm thick

12шт.

24

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

10шт.

25

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

4шт.

26

P1831625

ANGLE

BRACKET - mounting, access cover

2шт.

27

P32465

SCREW

- hex socket, 10 mm x 25 mm

2шт.

28

P134596

SAFETY NUT

NUT - hex, self-locking,10 mm

2шт.

29

REF

INSTRUCTION

SEAL - cover, 25-1/2" long, cut from P1303155

2шт.

30

REF

INSTRUCTION

SEAL - cover, 5-3/8" long, cut from P1303155

2шт.

31

P35474

RIVET

RETAINER - bolt, sleeve type

3шт.
