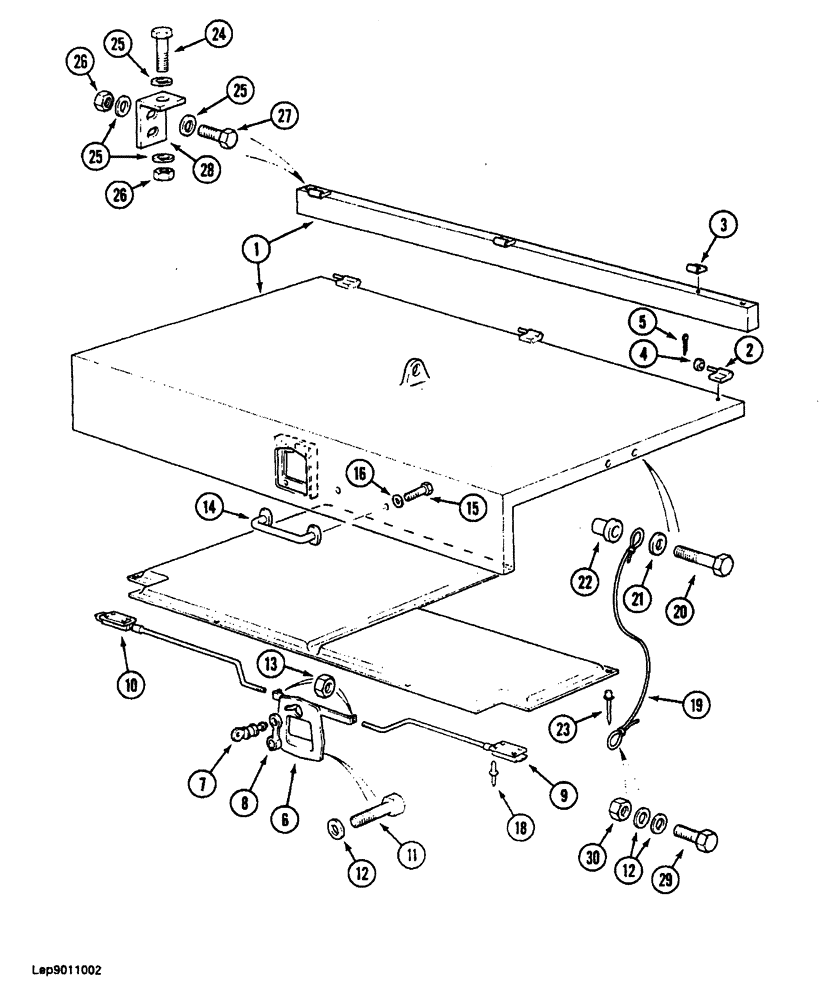

Запчасти Case 688 (9-014) - ENGINE UPPER ACCESS COVERS (09) - CHASSIS

1

P7743811

COWL

COVER AND HINGE ASSEMBLY - engine upper access, Includes: Ref. 2 - 5

1шт.

2

P36669

FIXED HINGE

HINGE - cover

3шт.

3

P36667

FENDER

BRACKET - hinge

3шт.

4

P34607

WASHER

- flat, 6 mm

3шт.

5

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

3шт.

P1352004

LOCK ASSY

LOCK ASSEMBLY - upper access cover, Includes: Ref. 6 - 10

1шт.

6

P852096

HANDLE

AND LOCK ASSEMBLY - cover, Includes: Ref. 7 - 8

1шт.

7

P152083

LOCK, CYLINDER

CYLINDER AND KEY - lock

1шт.

8

P2340499

DOOR COVER

PROTECTOR - cylinder

1шт.

9

P1352017

END FITTING

LATCH AND ROD ASSEMBLY - cover, left-hand side

1шт.

10

P1352016

END FITTING

LATCH AND ROD ASSEMBLY - cover, right-hand side

1шт.

11

P32621

SCREW

BOLT - hex head, 6 mm x 16 mm

4шт.

12

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

13

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

14

P1352041

HANDLE

- cover lift

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

16

P3528794

WASHER

SPACER - bolt, 6 mm

2шт.

17

P3441490

PANEL

PAD - insulation, access cover, if used

1шт.

17

P3441491

PANEL

PAD - insulation, access cover, if used

1шт.

18

P35413

RIVET

POP RIVET - 8 mm x 16.5 mm

8шт.

19

P2531358

CABLE

- upper access cover

1шт.

20

P133884

SCREW

BOLT - hex head, 8 mm x 35 mm

1шт.

21

P3528794

WASHER

SPACER - bolt, 6 mm thick

1шт.

22

P35422

RIVET

RETAINER - bolt, sleeve type

1шт.

23

P35426

RIVET

POP RIVET - 4.8 mm x 25 mm

12шт.

24

P933816

SCREW

BOLT - hex, 10 mm x 95 mm

2шт.

25

P3528795

WASHER

SPACER - bolt, 7 mm thick

12шт.

26

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

10шт.

27

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

4шт.

28

P1831625

ANGLE

BRACKET - mounting, access cover

2шт.

29

P133884

SCREW

BOLT - hex, 8 mm x 35 mm

1шт.

30

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

1шт.
