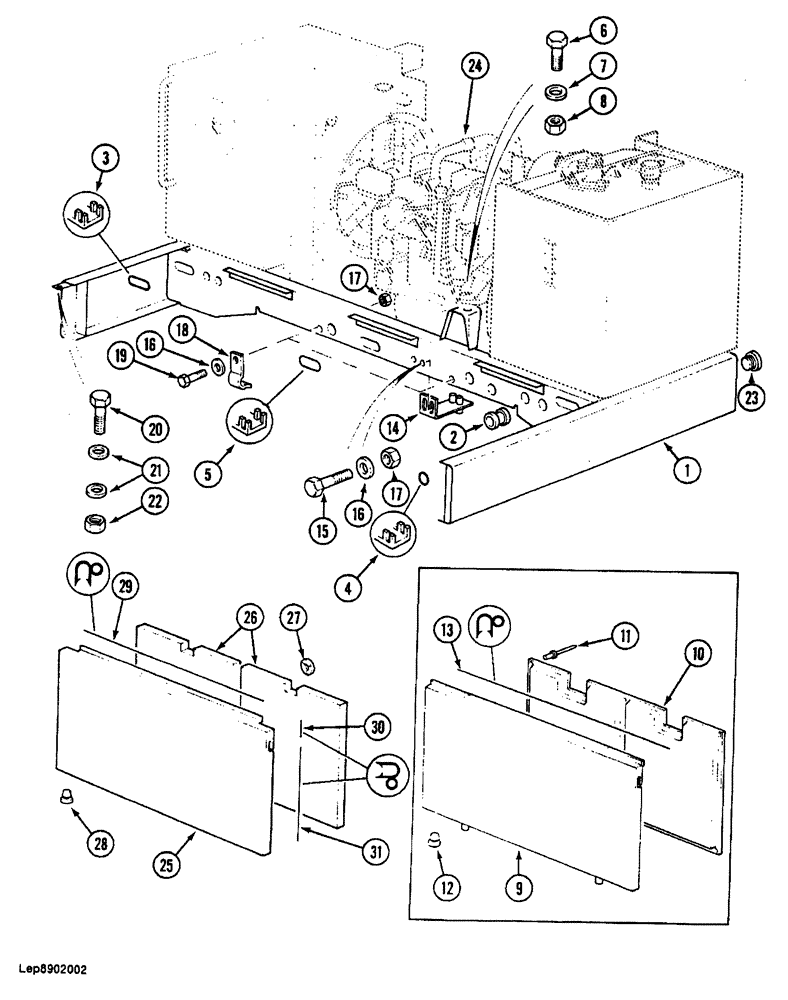

Запчасти Case 688 (9-010) - ENGINE FRAME AND ACCESS COVERS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
P54937
CHASSIS
FRAME - engine and hydraulic reservoir mounting
1шт.
2
P41478
GROMMET
Frame, electrical harness
5шт.
3
REF
INSTRUCTION
PROTECTOR - edge, frame, 7-3/4" long, cut from P1303158
2шт.
4
REF
INSTRUCTION
PROTECTOR - edge, frame, 8-1/8" long, cut from P1303161
1шт.
5
REF
INSTRUCTION
PROTECTOR - edge, frame, 4-1/14" long, cut from P1303158
2шт.
6
P33855
SCREW
BOLT - hex, 16 mm x 90 mm
3шт.
7
P3528790
WASHER
SPACER - bolt, 11 mm thick
3шт.
8
P34562
SAFETY NUT
Hex, self-locking, 16 mm
3шт.
9
P7543889
COWLING
COVER - engine front
1шт.
10
P3441410
PANEL
PAD - insulation, engine cover
1шт.
10
P3441484
PANEL
PAD - insulation, engine cover
1шт.
11
P35418
RIVET
POP - 8 mm x 17 mm, Serial Range: pad-cover
9шт.
12
P41467
STOP
PLUG - cover, rubber
4шт.
13
REF
INSTRUCTION
SEAL - cover, 48-1/2" long, cut from P1303155
1шт.
14
P7128222
SUPPORT
Hose, engine breather
1шт.
15
P933890
SCREW
BOLT - hex, 10 mm x 30 mm
2шт.
16
P3528795
WASHER
SPACER - bolt, 7 mm thick
10шт.
17
P34598
SAFETY NUT
Hex, self-locking, 10 mm
6шт.
18
P926460
SUPPORT
BRACKET - support, center lower access cover
2шт.
19
P933818
SCREW
BOLT - hex, 10 mm x 40
2шт.
20
P33866
SCREW
BOLT - hex head, M20 x 75
10шт.
21
P4328747
WASHER
SPACER - bolt, 14 mm thick
20шт.
22
P134564
SAFETY NUT
Hex, self-locking, 20 mm
10шт.
23
P3237454
PLASTIC PLUG
At frame, small
1шт.
24
A174288
ENGINE ASSEMBLY
ENGINE ASSY Excavator, see Figures 2-18 - 2-80 & 3-14 - 3-28, (Replaces A174251)
1шт.
25
P8143847
COWL
COVER - engine front
1шт.
26
P4241444
FOAM
PAD - insulation, engine cover
2шт.
27
P3036998
CLIP,ELECTRICAL
RETAINER -, Serial Range: pad-cover
10шт.
28
P41467
STOP
PLUG - cover, rubber
4шт.
29
REF
INSTRUCTION
SEAL - cover, 47-1/2" long, cut from P1303155
1шт.
30
REF
INSTRUCTION
SEAL - cover, 2-1/2" long, cut from P1303155
2шт.
31
REF
INSTRUCTION
SEAL - cover, 19-1/2" long, cut from P1303155
2шт.
Выбрано товаров: 32
