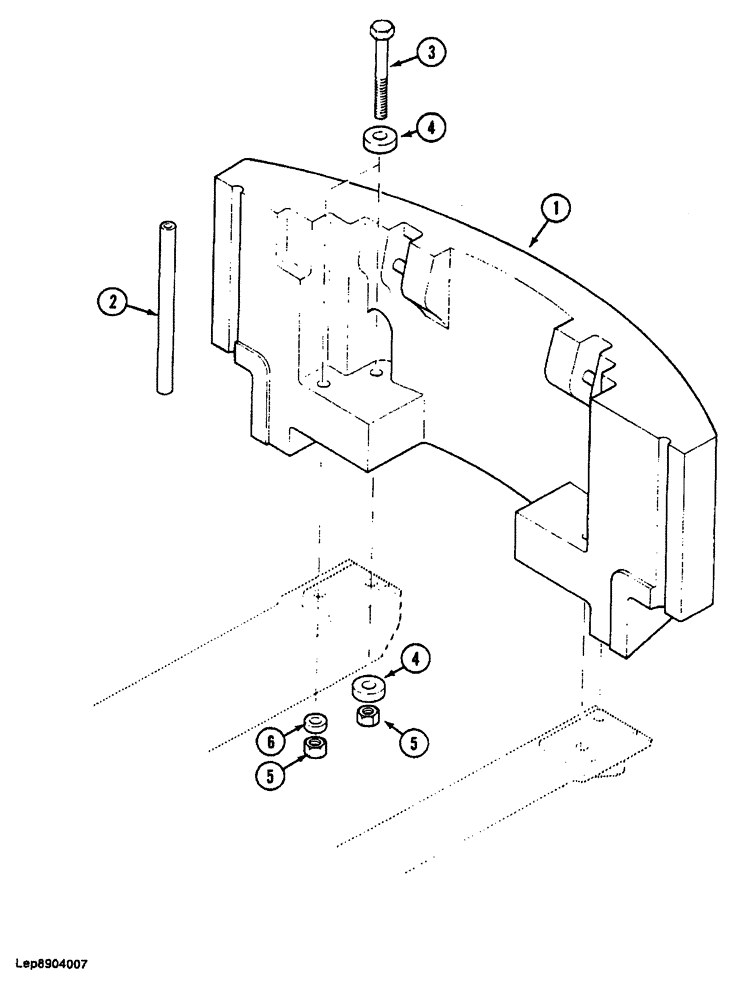

Запчасти Case 688 (9-008) - COUNTERWEIGHT AND ENGINE COMPARTMENT (09) - CHASSIS

1

P603812

BALANCER

COUNTERWEIGHT - excavator

1шт.

2

REF

INSTRUCTION

SEAL - counterweight, 29-3/4" long, cut from P1303179

2шт.

3

P433848

SCREW

BOLT - hex, 27 mm x 305 mm

4шт.

4

P4328721

WASHER

SPACER - bolt, 19 mm thick, 60 mm OD

6шт.

5

P634504

NUT

Hex, self-locking, 27 mm

4шт.

6

P5428707

WASHER

SPACER - bolt, 19 mm thick, 40 mm OD

2шт.
