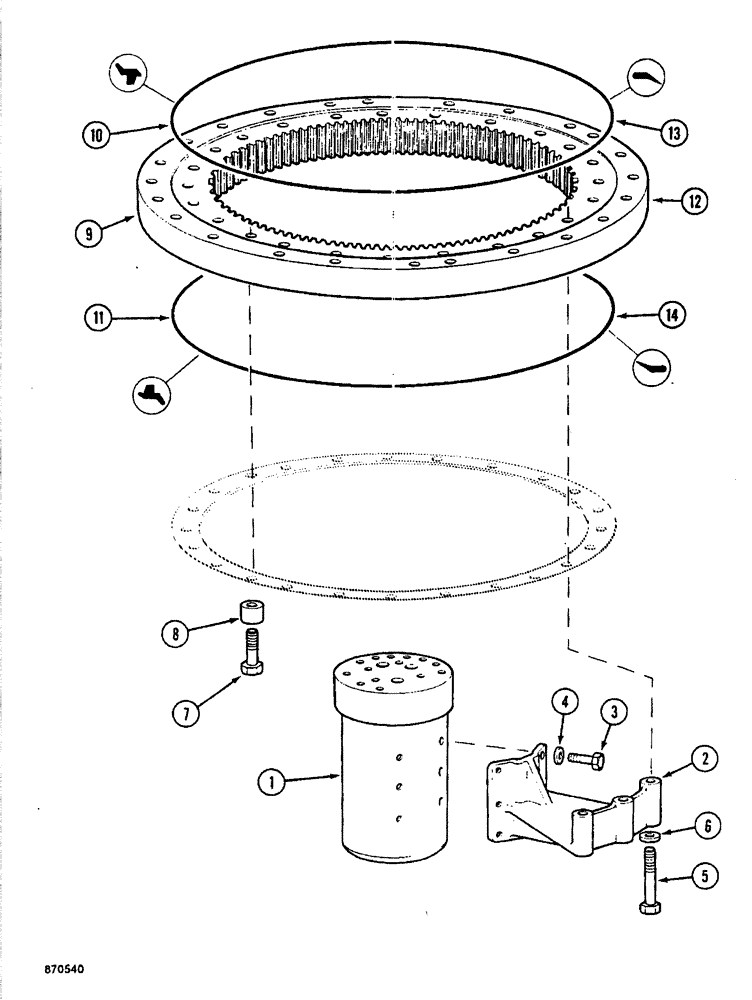

Запчасти Case 688 (9-002) - TURNTABLE BEARING (09) - CHASSIS

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, see Figure 8-78

1шт.

2

P2346173

SUPPORT

BRACKET - mounting, swivel, cast type, if used

1шт.

2

P154927

SUPPORT

BRACKET - mounting, swivel, fabricated type, if used

1шт.

3

P933819

SCREW

BOLT - hex, 12 mm x 55

6шт.

4

P5428789

WASHER

SPACER - bolt, 7 mm thick

3шт.

5

P1633872

SCREW

BOLT - hex, 20 mm x 150, grade 10.9

3шт.

6

P4328731

WASHER

SPACER - bolt, 24 mm thick

6шт.

7

P1633877

SCREW

BOLT - hex, 20 mm x 100, grade 10.9

43шт.

8

P4528718

WASHER

SPACER - bolt, 40 mm thick

43шт.

P2239913

SLEWING RING

BEARING ASSEMBLY - turntable, if used (Replaces P739983), Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turntable

1шт.

10

P8046009

SEAL

Turntable bearing, upper, cut to length as needed and use P1003576 adhesive on ends, if used

1шт.

11

P8046009

SEAL

Turntable bearing, lower, cut to length as needed and use P1003576 adhesive on ends, if used

1шт.

P2239913

SLEWING RING

BEARING - turntable (Replaces P739983), Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING - turntable

1шт.

13

P9346071

SEAL

Turntable bearing, upper, if used

1шт.

14

P9346071

SEAL

Turntable bearing, lower, if used

1шт.
