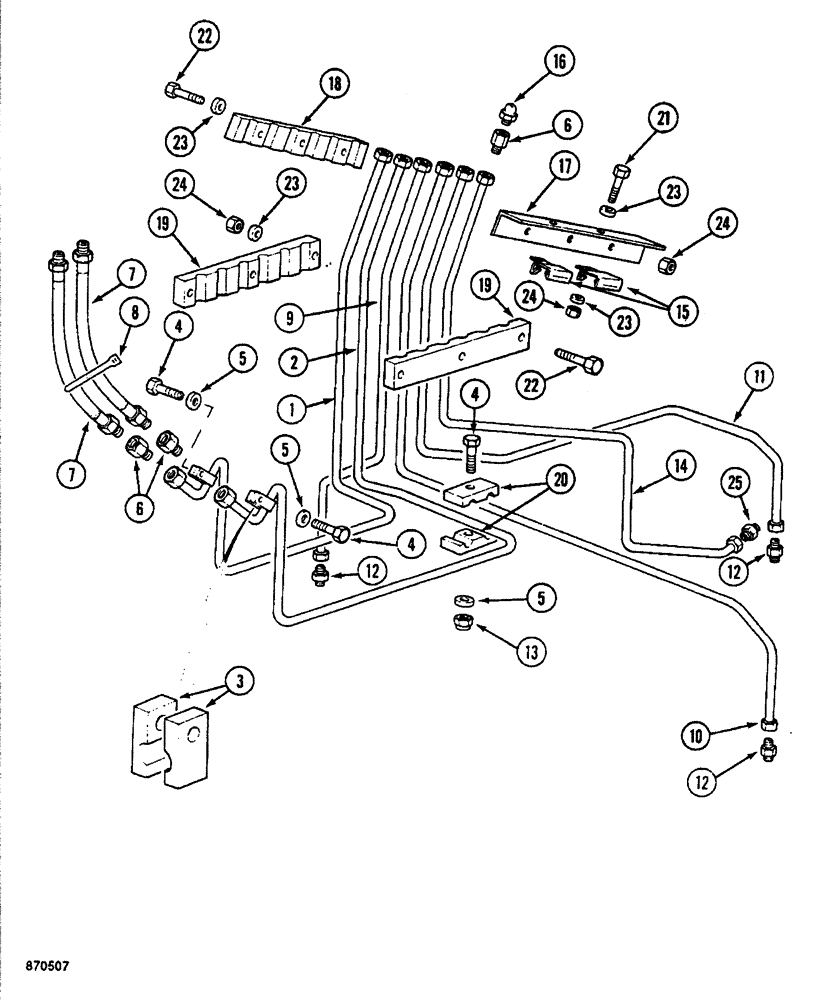

Запчасти Case 688 (8-188) - LUBRICATION LINES (08) - HYDRAULICS

1

P6849111

PIPE

TUBE - lubrication, right-hand boom cylinder, base end

1шт.

2

P6849112

PIPE

TUBE - lubrication, left-hand boom cylinder, base end

1шт.

3

P4620319

SHIN

CLAMP - boom lubrication tubes

4шт.

4

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

3шт.

5

P3528795

WASHER

SPACER - bolt, 7 mm thick

3шт.

6

P3237597

FITTING

ADAPTER - lubrication, Serial Range: hose-tube

8шт.

7

P5931961

HOSE

- 27-9/16" long, to boom cylinders at base end

2шт.

8

P336923

CLAMP

TIE STRAP - hose

1шт.

9

P5849090

PIPE

TUBE - lubrication, turntable bearing

1шт.

10

P5949175

PIPE

TUBE - lubrication, turntable bearing

1шт.

11

P5949177

PIPE

TUBE - lubrication, turntable bearing

1шт.

12

P3237581

UNION

ADAPTER - straight

3шт.

P7046042

SEAL

- adapter

1шт.

13

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

14

P5949176

PIPE

TUBE - lubrication, turntable bearing

1шт.

15

P1436963

CLASP

CLIP - harness retainer, 1/2" - 3/4" range

2шт.

16

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

6шт.

17

P1831646

ANGLE BAR

BRACKET - tube clamp

1шт.

18

P4620334

SHIN

CLAMP - tube, upper, for six tubes

1шт.

19

P4620313

SHIN

CLAMP - tube, center, for six tubes

2шт.

20

P4420364

SHIN

CLAMP - tube, lower, for two tubes

2шт.

21

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

22

P733038

SCREW

BOLT - hex, 6 mm x 40 mm

6шт.

23

P3528799

WASHER

SPACER - bolt, 4 mm thick

10шт.

24

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

8шт.

25

P3237530

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.
