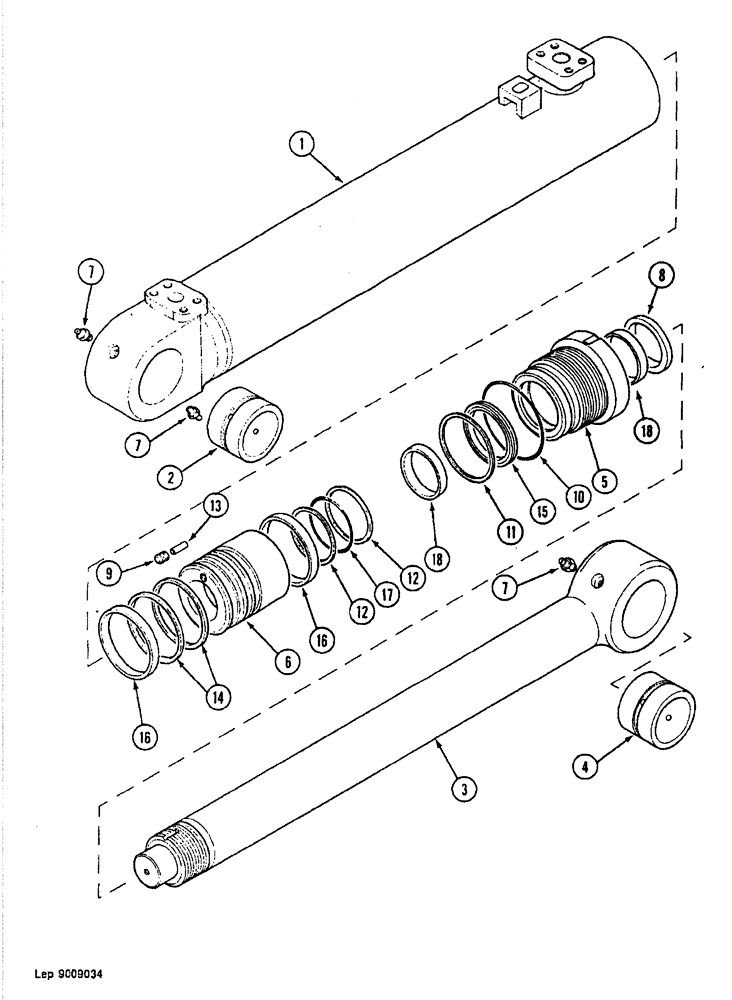

Запчасти Case 688 (8-186) - TOOL CYLINDER (08) - HYDRAULICS

P7946797

CYLINDER ASSY.

CYINDER ASSEMBLY - boom (Replaces P7646758, P7946756), Includes: Ref. 1 - 18

1шт.

P1752429

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1528673

BUSHING

- tube

1шт.

P8649488

PISTON ROD

ROD ASSEMBLY - piston (Replaces P8349430, P8949498), Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1528673

BUSHING

- piston rod, to letter ( A) identification

1шт.

4

P4028780

BUSHING

- piston rod, from letter (B) identification and after

1шт.

5

P4129183

CYLINDER END CAP

GLAND - cylinder (Replaces P3829150)

1шт.

6

A3829155

PISTON

- cylinder

1шт.

7

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

P5649643

SEAL PACKAGE

KIT - seal (Replaces P5349624)

1шт.

8

P146064

WIPER SEAL

WIPER - piston rod

1шт.

9

P1432951

SCREW

SET SCREW - pin

1шт.

10

P730449

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

- gland, large

1шт.

11

P2030486

SEAL

- gland (Replaces P730492 and P4146043)

1шт.

12

P9046019

BACK-UP RING

BACKUP RING - piston O-ring (Replaces P745388)

2шт.

13

P827736

PIN

- locking

1шт.

14

P1451233

SPECIAL MAT. SEAL

SEAL - piston

2шт.

15

P1551252

SEAL

U-CUP SEAL - piston rod

1шт.

16

P1845281

BAND

RING - wear

2шт.

17

P2030484

SEAL,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

O-RING - piston rod (Replaces P1930425)

1шт.

18

P2045250

BAND

RING - wear

2шт.
