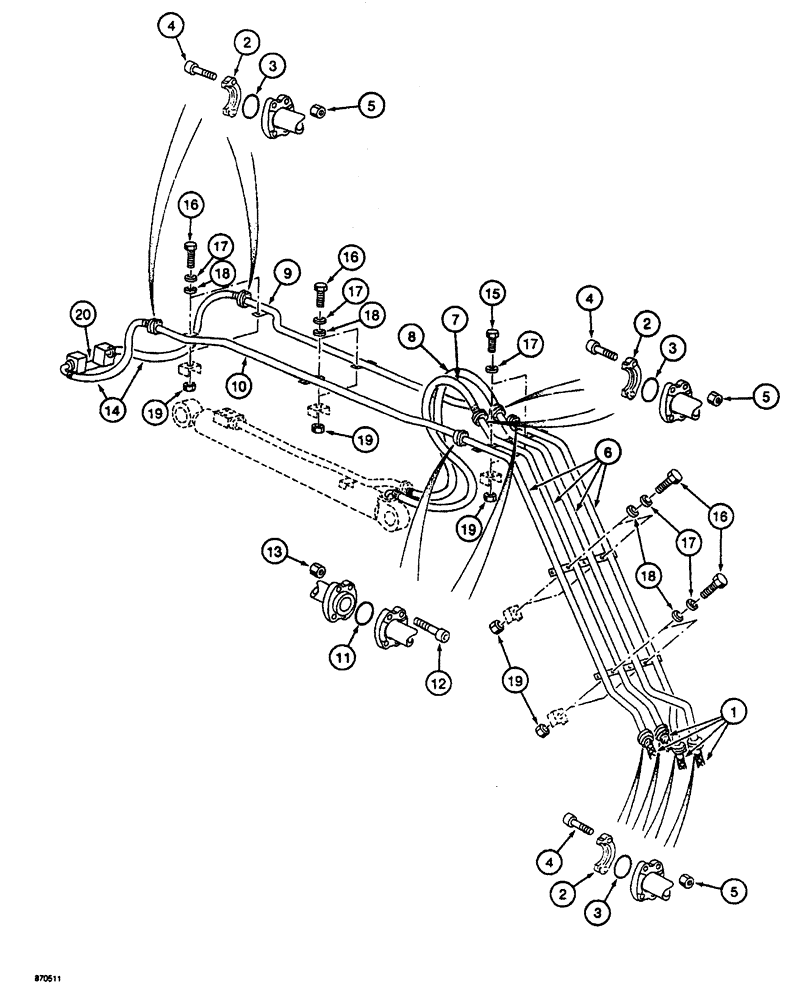

Запчасти Case 688 (8-170) - ARM AND TOOL CYLINDER CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from arm and tool sections of attachment control valve, see Figures 8-72 & 8-74

1шт.

2

P4024266

CLAMP

SPLIT FLANGE - hose flange

16шт.

3

P1130483

O-RING

Hose flange

8шт.

4

P732994

SCREW

BOLT - hex socket head, 10 mm x 50 mm, grade 10.9

32шт.

5

86500689

NUT,M10 x 1.5, Cl 10

32шт.

6

P3050184

RETURN PIPE

TUBE ASSEMBLY - to arm and tool cylinders

1шт.

7

P5431927

HOSE

31-1/2" long, to base end of arm cylinder

1шт.

8

P5931919

HOSE

31-1/2" long, to end of arm cylinder, if used

1шт.

8

P5431924

HOSE

39-3/8" long, to end of arm cylinder, if used

1шт.

9

P3050183

PIPE

TUBE - RH side of arm, to tool cylinder

1шт.

10

P3050182

PIPE

TUBE - LH side of arm, to tool cylinder

1шт.

11

P1130483

O-RING

Hose flange

2шт.

12

P732994

SCREW

BOLT - hex socket head, 10 mm x 50 mm, grade 10.9

8шт.

13

86500689

NUT,M10 x 1.5, Cl 10

8шт.

14

P5431928

HOSE

49-1/4" long, to tool attachment block

2шт.

15

P933839

SCREW

BOLT - hex head, 10 mm x 35 mm

2шт.

16

P1133839

SCREW

BOLT - hex head, 10 mm x 45 mm

8шт.

17

P3528795

WASHER

SPACER - bolt, 7 mm thick

10шт.

18

P1245227

WASHER

Flat, 10 mm

8шт.

19

86500689

NUT,M10 x 1.5, Cl 10

10шт.

20

REF

INSTRUCTION

BLOCK - manifold, to tool cylinder, see Figure 8-182

1шт.
