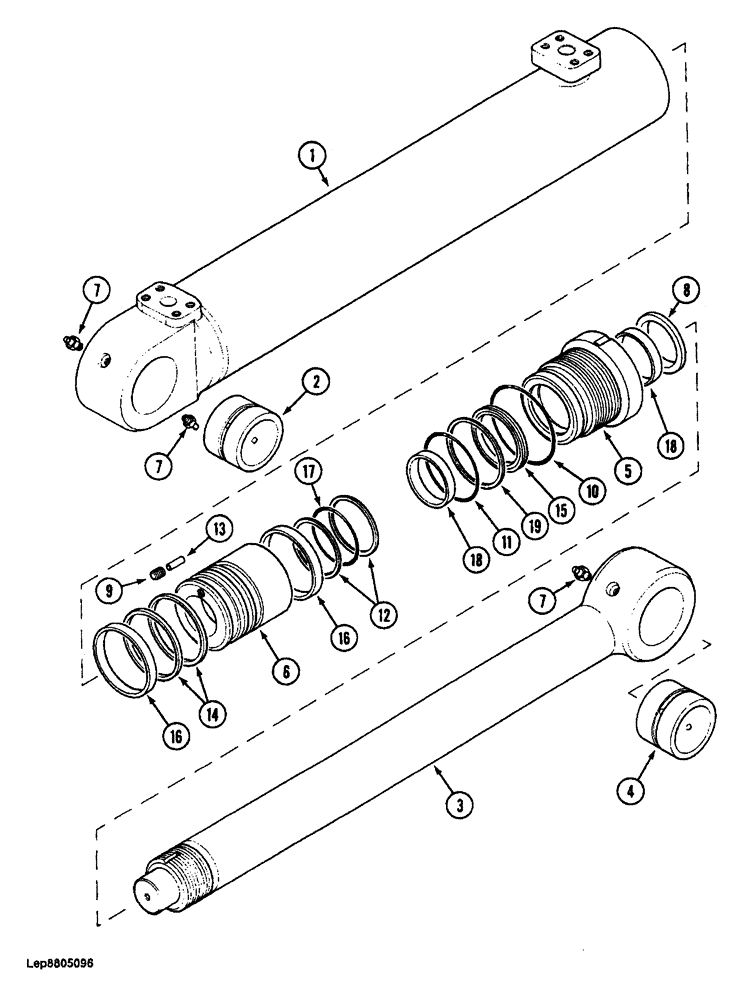

Запчасти Case 688 (8-164) - BOOM CYLINDER, TO LETTER L IDENTIFICATION, P.I.N. FROM 74123 TO 74485, 11501 TO 11552 (08) - HYDRAULICS

P7646757

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom (Order P8346719) (See Figure 8-166), Includes: Ref. 1 - 19

2шт.

P1752411

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1528673

BUSHING

- tube

1шт.

P8349427

PISTON ROD

ASSEMBLY - piston (Order P8849435), Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1528673

BUSHING

- piston rod

1шт.

5

P3829150

CYLINDER END CAP

GLAND - cylinder (Order P4129183)

1шт.

6

P3829155

PISTON

- cylinder

1шт.

7

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

8

P146064

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N P5349624

1шт.

9

P1432951

SCREW

SET SCREW - pin

1шт.

Part of seal kit P/N P5349624

1шт.

10

P730449

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

- gland, large

1шт.

Part of seal kit P/N P5349624

1шт.

11

P730492

O-RING

- gland, small (Order P2030486)

1шт.

When ordering o-ring and backup ring, also order 1 seal P2030486.

1шт.

12

P745388

BACK-UP RING

BACKUP RING - piston rod O-ring (Order P9046019)

2шт.

Part of seal kit P/N P5349624

1шт.

13

P827736

PIN

- locking

1шт.

Part of seal kit P/N P5349624

1шт.

14

P1451233

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of seal kit P/N P5349624

1шт.

14

P1451233

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of seal kit P/N P5349624

1шт.

15

P1551252

SEAL

U-CUP SEAL - piston rod

1шт.

Part of seal kit P/N P5349624

1шт.

16

P1845281

BAND

RING - wear

2шт.

Part of seal kit P/N P5349624

1шт.

17

P1930425

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- piston rod (Order P2030484)

1шт.

Part of seal kit P/N P5349624

1шт.

18

P2045250

BAND

RING - wear

2шт.

Part of seal kit P/N P5349624

1шт.

19

P4146043

SEAL

BACKUP RING - gland O-ring (Order P2030486)

1шт.

Part of seal kit P/N P5349624

1шт.

When ordering o-ring and backup ring, also order 1 seal P2030486.

1шт.

P5349624

KIT

- seal, includes: Ref. 8 - 19 (Order P5649643)

1шт.
