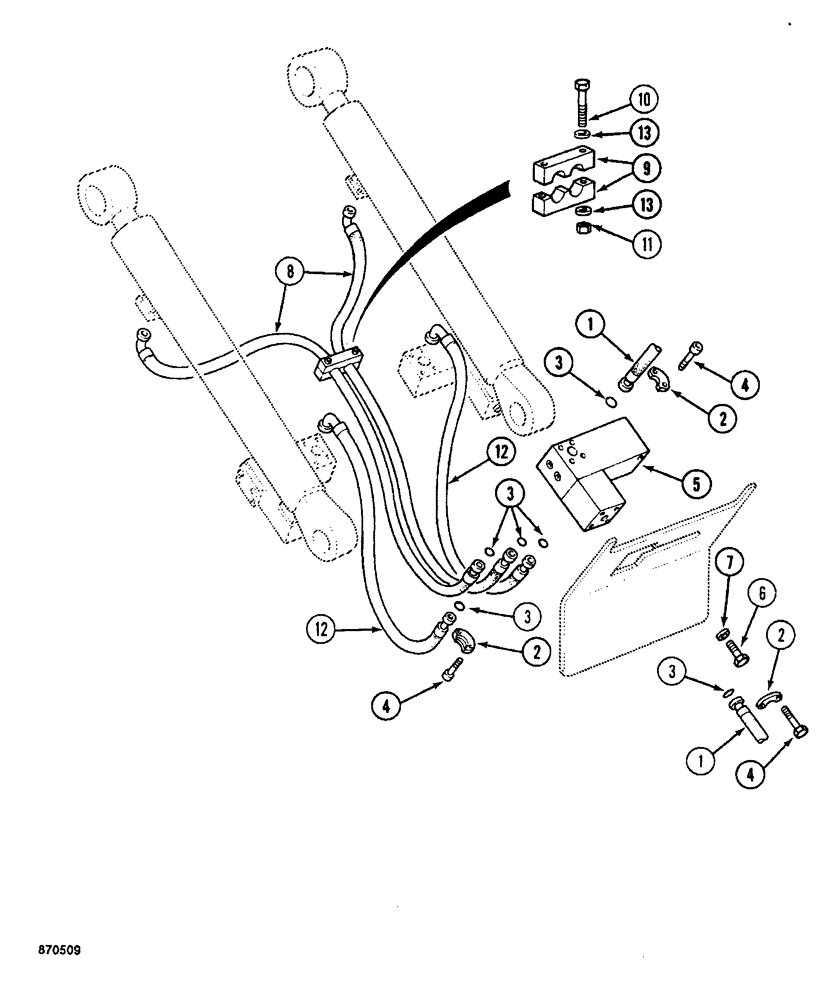

Запчасти Case 688 (8-154) - BOOM CYLINDER CIRCUIT, HOSES AT CYLINDER (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from boom section of attachment control valve, see Figures 8-72 & 8-74

2шт.

2

P4024266

CLAMP

SPLIT FLANGE - hose flange

12шт.

3

P1130483

O-RING

- hose flange

6шт.

4

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24шт.

5

REF

INSTRUCTION

BLOCK ASSEMBLY - hose manifold, see Figures 8-158 & 8-160

1шт.

6

P833894

SCREW

BOLT - hex head, 20 mm x 60 mm

2шт.

7

P4328747

WASHER

SPACER - bolt

2шт.

8

P6631993

HOSE

- 59" long, manifold block to rod end of boom cylinder

2шт.

9

P4420392

SHIN

CLAMP - hose, two hose

2шт.

10

P933808

SCREW

BOLT - hex head, 10 mm x 85 mm (Replaces P133841)

2шт.

11

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

12

REF

INSTRUCTION

HOSE - manifold block to base end of boom cylinder, see Figures 8-152

2шт.

13

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.
