(8-152) - BOOM CYLINDER CIRCUIT, HOSES AT CYLINDER

Запчасти Case 688 (8-152) - BOOM CYLINDER CIRCUIT, HOSES AT CYLINDER (08) - HYDRAULICS

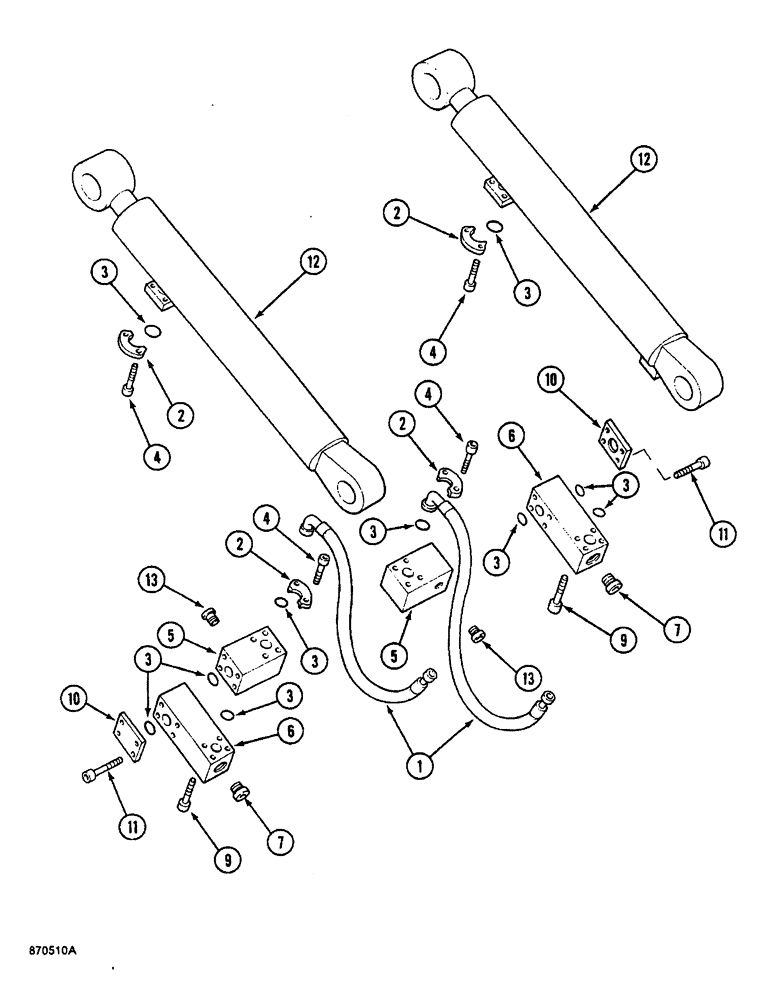

Схема запчастей Case 688 - (8-152) - BOOM CYLINDER CIRCUIT, HOSES AT CYLINDER (08) - HYDRAULICS
12
5
3
3
4
5
1
3
10
4
2
4
13
12
7
9
3
2
6
9
11
6
2
3
2
3
10
4
3
7
3
11
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P5931932

HOSE

- 24-13/16" long, manifold block to base end of boom cylinder

2шт.

2

P4024266

CLAMP

SPLIT FLANGE - hose flange

8шт.

3

P1130483

O-RING

- hose flange and adapter block

10шт.

4

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

5

P4223337

BLOCK ASSY.

BLOCK - adapter, hose to manifold block

2шт.

6

P4223336

BLOCK ASSY.

BLOCK - manifold, at base end of boom cylinder

2шт.

7

P2537413

PLUG

- manifold block

2шт.

P1145268

SEAL

- plug

1шт.

9

P32937

SCREW

BOLT - hex socket head, 10 mm x 50 mm, grade 12.9

8шт.

10

P4223335

LARGE PLATE

PLATE - cover, manifold block

2шт.

11

P732969

SCREW

BOLT - hex socket head, 10 mm x 100 mm, grade 12.9

8шт.

12

REF

INSTRUCTION

CYLINDER ASSEMBLY - see Figures 8-164 - 8-168

2шт.

13

P2537447

PLUG

- block

2шт.

P7046042

SEAL

- plug

1шт.
