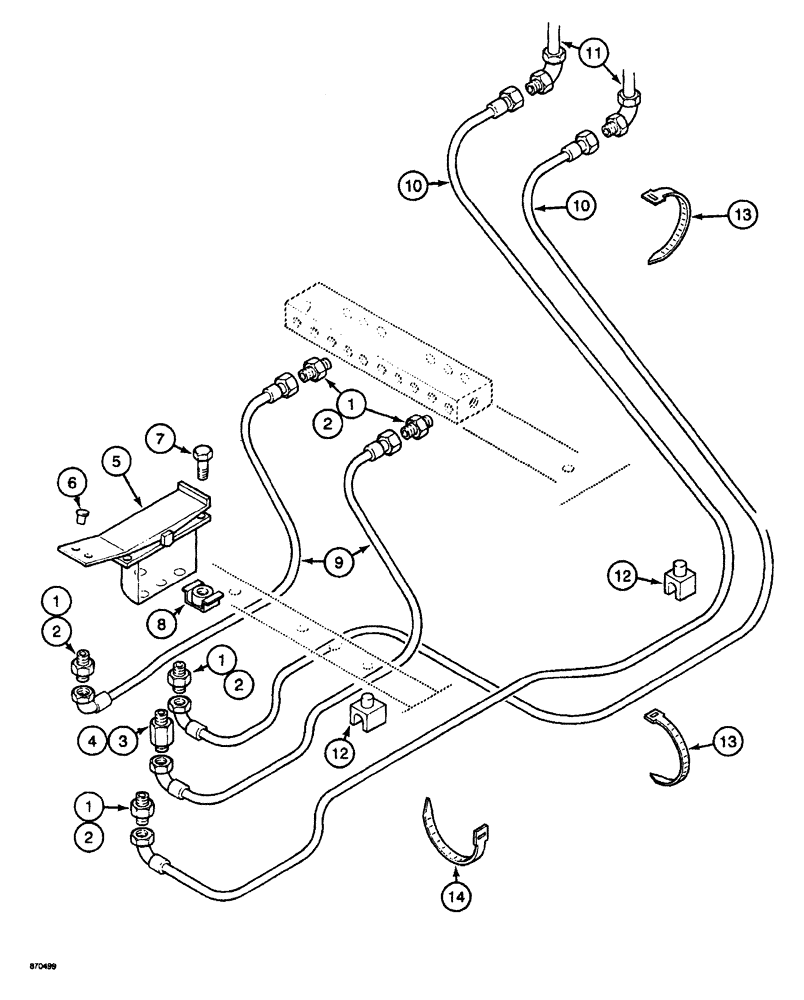

Запчасти Case 688 (8-136) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO OPTION FOOT CONTROL VALVE (08) - HYDRAULICS

1

P3237530

UNION

ADAPTER - straight, Includes: Ref. 2

5шт.

2

P7046042

SEAL

- adapter

1шт.

3

P3237581

UNION

ADAPTER - straight, Includes: Ref. 4

1шт.

4

P7046042

SEAL

- adapter

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, see Figures 8-112 & 8-114

1шт.

6

P3037430

PLASTIC PLUG

PLUG - plastic, foot pedal

2шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

4шт.

8

P1334571

NUT

- hex, cage type

4шт.

9

P5431978

HOSE

- 33-1/2" long, control, at manifold block

2шт.

10

P5431956

HOSE

- 70-7/8" long, control, to option control valve

2шт.

11

REF

INSTRUCTION

ELBOW - 90 degree, see page 8-139 for circuit to option control valve

2шт.

12

P2036942

SUPPORT

RETAINER - control circuit hoses

5шт.

13

P336923

CLAMP

TIE STRAP - circuit hose, 4-5/8" long

1шт.

14

P51946

CLAMP

TIE STRAP - circuit hose, 10-1/8" long

1шт.
