(8-124) - HYDRAULIC CONTROL CIRCUIT, TO HYDRAULIC HAMMER CONTROL VALVE

Запчасти Case 688 (8-124) - HYDRAULIC CONTROL CIRCUIT, TO HYDRAULIC HAMMER CONTROL VALVE (08) - HYDRAULICS

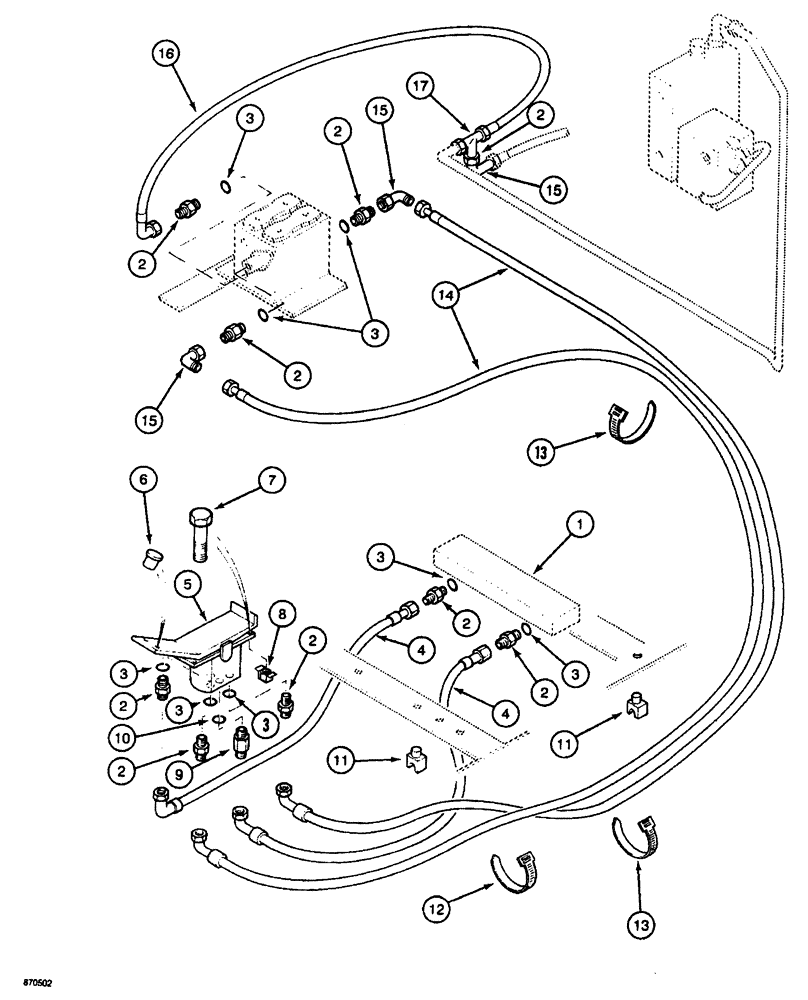

Схема запчастей Case 688 - (8-124) - HYDRAULIC CONTROL CIRCUIT, TO HYDRAULIC HAMMER CONTROL VALVE (08) - HYDRAULICS
2
2
3
4
3
10
3
2
9
3
8
11
15
2
15
15
3
11
1
2
16
4
3
5
3
2
17
7
2
13
10
2
12
13
6
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BLOCK - manifold, control circuit hose, parts list see Figures 8-98 & 8-100

1шт.

2

P3237530

UNION

ADAPTER - straight, Includes: Ref. 3

8шт.

3

P7046042

SEAL

- adapter

1шт.

4

P5431978

HOSE

- 33-1/2" long

2шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - foot control, parts list see Figures 8-112 & 8-114

1шт.

6

P3037430

PLASTIC PLUG

PLUG - plastic, foot pedal

2шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

4шт.

8

P1334571

NUT

- hex, cage type

4шт.

9

P3237581

UNION

ADAPTER - straight, Includes: Ref. 10

1шт.

10

P7046042

SEAL

- adapter

1шт.

11

P2036942

SUPPORT

RETAINER - control circuit hoses

1шт.

12

P51946

CLAMP

TIE STRAP - circuit hoses, 10-1/8" long

1шт.

13

P336923

CLAMP

TIE STRAP - circuit hoses, 4-5/8" long

1шт.

14

P6631978

HOSE

- 98-7/16" long, control circuit

2шт.

15

P1737018

ANGLE

ELBOW - 90 degree

3шт.

16

P5431940

HOSE

- 49-3/16" long, control circuit

1шт.

17

P2643351

BLOCK ASSY.

TEE - power sensing tubes

1шт.
