Запчасти Case 688 (8-120) - HYDRAULIC HAMMER CIRCUIT, PRESSURE AND RETURN LINES (08) - HYDRAULICS

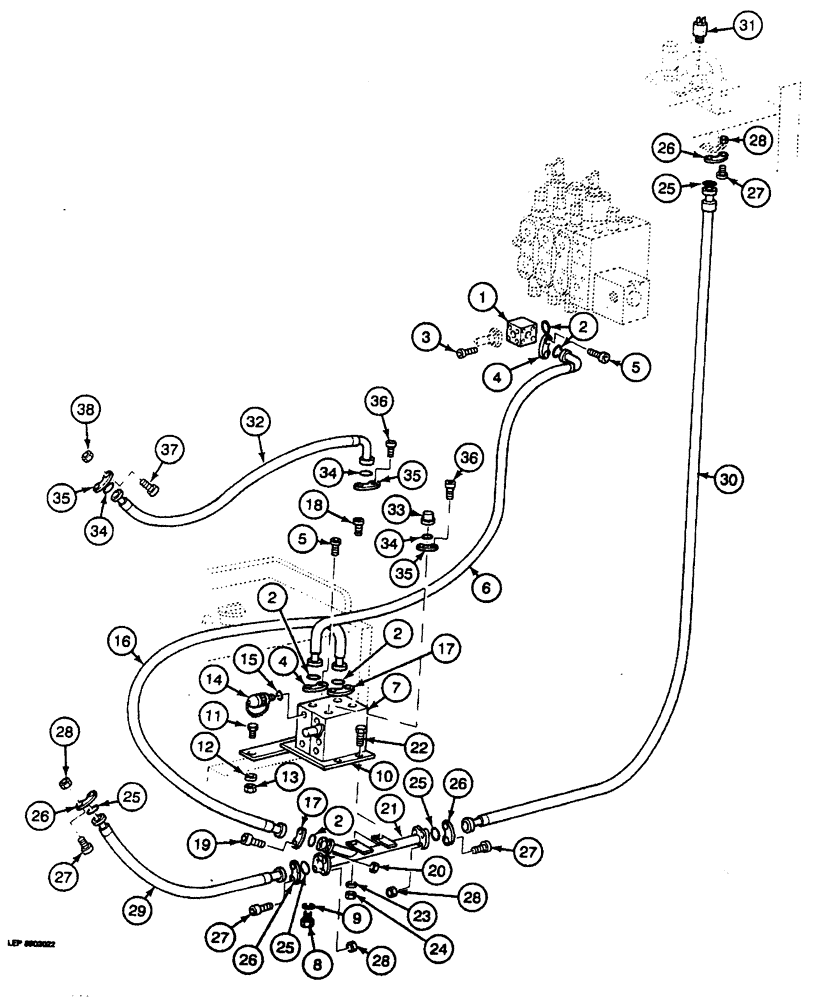

Схема запчастей Case 688 - (8-120) - HYDRAULIC HAMMER CIRCUIT, PRESSURE AND RETURN LINES (08) - HYDRAULICS
3
38
17
13
2
29
36
28
2
28
25
37
35
25
22
16
12
28
10
27
6
34
5
34
25
20
2
26
1
5
9
27
27
27
7
26
31
11
32
27
35
24
18
13
26
25
8
23
30
36
28
21
4
4
14
33
35
35
15
19
2

Артикул

Название

Примечание

Количество

1

P1237216

TEE

BLOCK - manifold

1шт.

2

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- manifold block

5шт.

3

P1032950

SCREW

BOLT - hex socket head, 12 mm x 150 mm, grade 10.9

4шт.

3

P732993

SCREW

BOLT - hex socket head, 12 mm x 120 mm, grade 10.9

4шт.

4

P4024267

SHIN

SPLIT FLANGE - hose

4шт.

5

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

6

P6531991

HOSE

- 63" long

1шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic hammer control, parts list Figures 8-132 & 8-134

1шт.

8

P33840

SCREW

BOLT - hex head, 12 mm x 30 mm

3шт.

9

P3528793

WASHER

SPACER - bolt, 8 mm thick

3шт.

10

P4327164

SUPPORT

PLATE - valve mounting

1шт.

11

P133804

BOLT,Hex, M20 x 85

- hex, 20 mm x 85 mm

2шт.

12

P3528796

WASHER

SPACER - bolt, 14 mm thick

2шт.

13

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

2шт.

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - quick disconnect

1шт.

15

P7046042

SEAL

- quick disconnect

1шт.

16

P6531972

HOSE

- 31-1/2" long

1шт.

17

P4024272

BRACKET

SPLIT FLANGE - hose

4шт.

18

P732911

SCREW

BOLT - hex socket head, 10 mm x 30 mm, grade 10.9

4шт.

19

P1332953

SCREW

BOLT - hex socket head, 10 mm x 45 mm, grade 10.9

4шт.

20

86500689

NUT,M10 x 1.5, Cl 10

Flange bolt M10, Cl 10

4шт.

21

P3550125

MANIFOLD

- hammer valve

1шт.

22

P33887

SCREW

BOLT - hex head, 12 mm x 45 mm

2шт.

23

P3528793

WASHER

SPACER - bolt, 8 mm thick

2шт.

24

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

2шт.

25

P1230493

O-RING

- hose flange

4шт.

26

P4024273

RETAINER

SPLIT FLANGE - hose

8шт.

27

P1232973

SCREW

BOLT - hex socket head, 12 mm x 50 mm, grade 10.9

16шт.

28

337475

NUT,M12, Cl 10

- M12, Cl 10

16шт.

29

P6531940

HOSE

- 63" long

1шт.

30

P6531974

HOSE

- 78-3/4" long

1шт.

31

P1241892

ELECTRO/HYD CONTACT

SENDER - filter restriction indicator

1шт.

32

P5431999

HOSE

- 63" long

1шт.

33

P5327832

BLANK-OFF PLUG

PLUG - flange type, PN400DN19

1шт.

34

P1130483

O-RING

- hose flange

3шт.

35

P4024266

CLAMP

SPLIT FLANGE - hose

6шт.

36

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

37

P732994

SCREW

BOLT - hex socket head, 10 mm x 50 mm, grade 10.9

4шт.

38

86500689

NUT,M10 x 1.5, Cl 10

Flange bolt M10, Cl 10

4шт.
