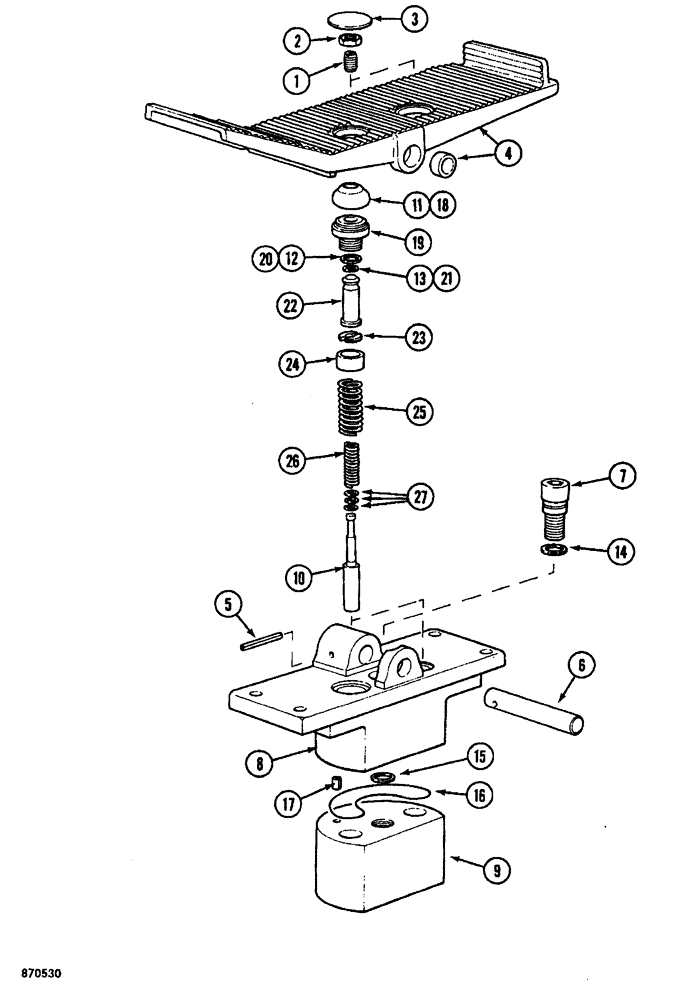

Запчасти Case 688 (8-114) - FOOT CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
P4343360
BLOCK ASSY.
VALVE ASSEMBLY - foot control (Replaces P2643369), Includes: Ref. 1 - 27
1шт.
P5242742
PEDAL
ASSEMBLY - foot, Includes: Ref. 1 - 6
1шт.
1
NSS
NOT SOLD SEPARAT
SCREW - adjustment
2шт.
2
NSS
NOT SOLD SEPARAT
NUT - lock, adjustment screw
2шт.
3
NSS
NOT SOLD SEPARAT
PLUG - pedal, at adjusting screw
2шт.
4
NSS
NOT SOLD SEPARAT
PEDAL AND BUSHINGS - foot control
1шт.
5
NSS
NOT SOLD SEPARAT
ROLL PIN - pedal shaft
1шт.
6
NSS
NOT SOLD SEPARAT
SHAFT - pedal
1шт.
7
NSS
NOT SOLD SEPARAT
BOLT - special, upper valve body to port block
1шт.
8
NSS
NOT SOLD SEPARAT
BODY - valve, upper
1шт.
9
NSS
NOT SOLD SEPARAT
BLOCK - port, valve
1шт.
10
NSS
NOT SOLD SEPARAT
SPOOL - regulating
2шт.
P5449619
SEAL PACKAGE
KIT - seal, guide, Includes: Ref. 11 - 13
1шт.
11
NSS
NOT SOLD SEPARAT
BOOT - rubber, cartridge guide
2шт.
12
NSS
NOT SOLD SEPARAT
O-RING - guide, large
2шт.
13
NSS
NOT SOLD SEPARAT
O-RING - guide, small
2шт.
P5449620
KIT
- seal, valve body, Includes: Ref. 14 - 17
1шт.
14
NSS
NOT SOLD SEPARAT
O-RING - valve body screw
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING - valve body, small
1шт.
16
NSS
NOT SOLD SEPARAT
O-RING - valve body, large
1шт.
17
NSS
NOT SOLD SEPARAT
ROLL PIN - port block
2шт.
P5449621
KIT
- cartridge and guide, Includes: Ref. 18 - 22
2шт.
18
NSS
NOT SOLD SEPARAT
BOOT - rubber, cartridge guide
1шт.
19
NSS
NOT SOLD SEPARAT
GUIDE - cartridge
1шт.
20
NSS
NOT SOLD SEPARAT
O-RING - guide, large
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING - guide, small
1шт.
22
NSS
NOT SOLD SEPARAT
CARTRIDGE - control
1шт.
P5449697
KIT
- cartridge spring, Includes: Ref. 23 - 27
2шт.
23
NSS
NOT SOLD SEPARAT
RETAINER - spring stop
1шт.
24
NSS
NOT SOLD SEPARAT
STOP - spring
1шт.
25
NSS
NOT SOLD SEPARAT
SPRING - cartridge, outer
1шт.
26
NSS
NOT SOLD SEPARAT
SPRING - cartridge, inner
1шт.
27
NSS
NOT SOLD SEPARAT
SHIM SET - spring
1шт.
Выбрано товаров: 33
