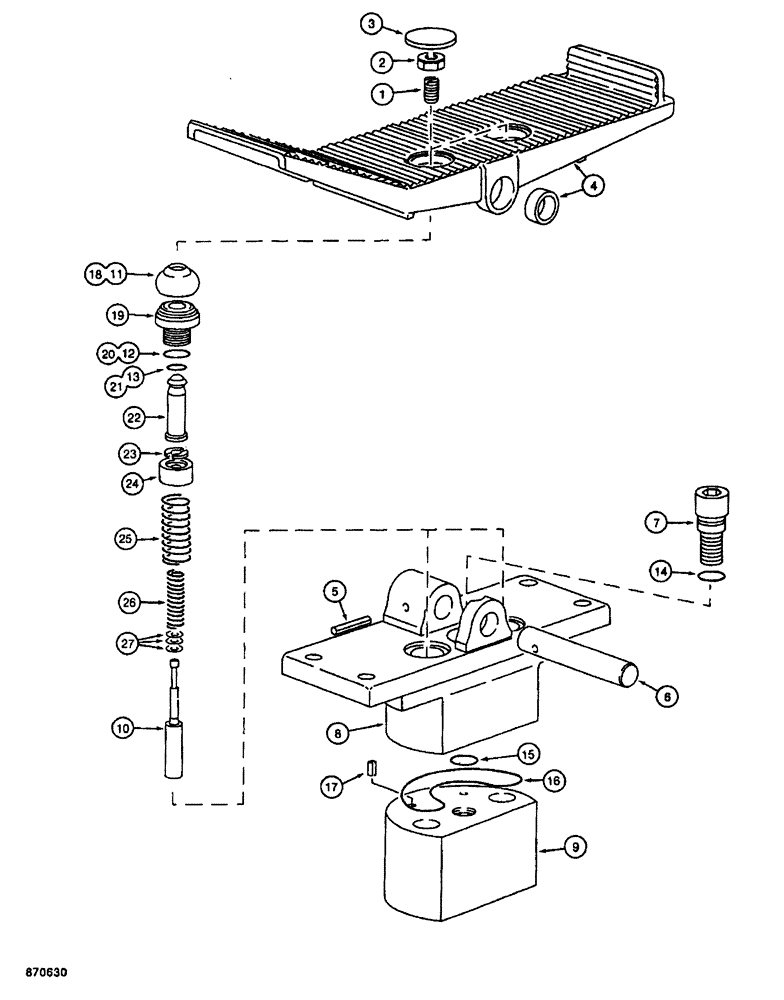

Запчасти Case 688 (8-112) - FOOT CONTROL VALVE (08) - HYDRAULICS

P2643369

BLOCK ASSY.

VALVE ASSEMBLY - foot control (Order P4343360, see Figure 8-114), Includes: Ref. 1 - 27

1шт.

P5242742

PEDAL

ASSEMBLY - foot, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW - adjustment

2шт.

2

NSS

NOT SOLD SEPARAT

NUT - lock, adjustment screw

2шт.

3

NSS

NOT SOLD SEPARAT

PLUG - pedal, at adjusting screw

2шт.

4

NSS

NOT SOLD SEPARAT

PEDAL AND BUSHINGS - foot control

1шт.

5

NSS

NOT SOLD SEPARAT

ROLL PIN - pedal shaft

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - pedal

1шт.

7

NSS

NOT SOLD SEPARAT

BOLT - special, upper valve body to port block

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - valve, upper

1шт.

9

NSS

NOT SOLD SEPARAT

BLOCK - port, valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - regulating

2шт.

P5449619

SEAL PACKAGE

KIT - seal, guide, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BOOT - rubber, cartridge guide

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - guide, large

2шт.

13

NSS

NOT SOLD SEPARAT

O-RING - guide, small

2шт.

P5449620

KIT

- seal, valve body, Includes: Ref. 14 -17

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - valve body screw

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - valve body, small

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - valve body, large

1шт.

17

NSS

NOT SOLD SEPARAT

ROLL PIN - port block

2шт.

P5449621

KIT

- cartridge and guide, Includes: Ref. 18 - 22

2шт.

18

NSS

NOT SOLD SEPARAT

BOOT - rubber, cartridge guide

1шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - cartridge

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - guide, large

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - guide, small

1шт.

22

NSS

NOT SOLD SEPARAT

CARTRIDGE - control

1шт.

P5449622

KIT

- cartridge spring, Includes: Ref. 23 - 27

2шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - spring stop

1шт.

24

NSS

NOT SOLD SEPARAT

STOP - spring

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - cartridge, outer

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - cartridge, inner

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM SET - spring

1шт.

P1530595

STEM

LEVER, L.H., hand control laver for tracking

1шт.

P1530596

STEM

LEVER, R.H., hand control lever for tracking

1шт.

P1329947

BALL KNOB

hand control lever for tracking

2шт.

P4620356

SHIN

PLATE, hand control lever fpr tracking

2шт.

P31911

BOLTS, hand control lever for tracking

8шт.
