(8-104) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO HAND CONTROL VALVES

Запчасти Case 688 (8-104) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO HAND CONTROL VALVES (08) - HYDRAULICS

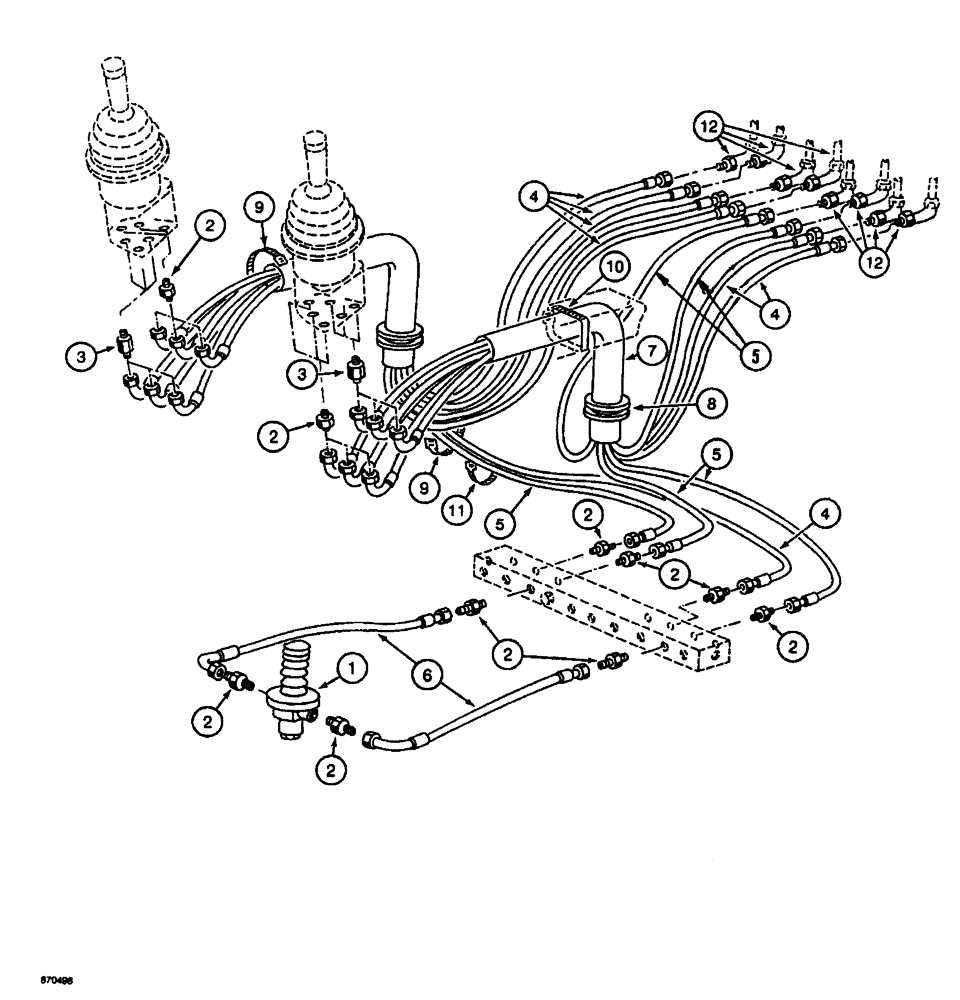

Схема запчастей Case 688 - (8-104) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO HAND CONTROL VALVES (08) - HYDRAULICS
2
4
1
12
2
8
10
2
5
9
4
3
6
5
5
2
2
9
2
3
2
11
2
12
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP - foot, control circuit, see Figure 9-28

1шт.

2

P3237530

UNION

ADAPTER - straight

14шт.

P7046042

SEAL

- adapter

1шт.

3

P3237581

UNION

ADAPTER - straight

6шт.

P7046042

SEAL

- adapter

1шт.

4

P5431954

HOSE

- 55-1/8" long, control circuit

7шт.

5

P5431955

HOSE

- 63" long, control circuit

5шт.

6

P5431952

HOSE

- 14-1/4" long, control circuit

2шт.

7

P4931937

LOOM

SLEEVE - hose protector

2шт.

8

P41478

GROMMET

- protector sleeve

2шт.

9

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.

10

P136922

CLAMP

TIE STRAP - hose, 13-3/4" long

1шт.

11

P336923

CLAMP

TIE STRAP - hose, 4-5/8" long

1шт.

12

REF

INSTRUCTION

ELBOW - 90 degree, see Figures 8-72 & 8-74 for control circuit to attachment and swing control valves

8шт.
