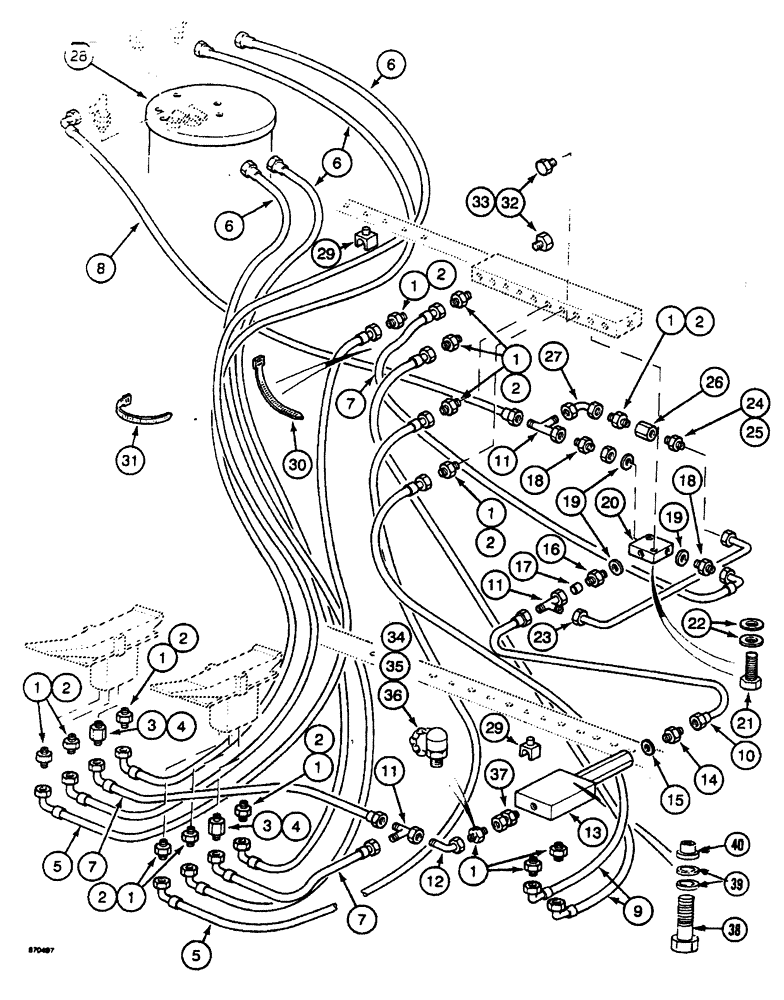

Запчасти Case 688 (8-102) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO FOOT CONTROL VALVES AND SWIVEL (08) - HYDRAULICS

1

P3237530

UNION

ADAPTER - straight, Includes: Ref. 2

14шт.

2

P7046042

SEAL

- adapter

1шт.

3

P3237581

UNION

ADAPTER - straight, long, Includes: Ref. 4

2шт.

4

P7046042

SEAL

- adapter

1шт.

5

P5431978

HOSE

- 33-1/2" long, control circuit

2шт.

6

P5431956

HOSE

- 70-7/9" long, control circuit

4шт.

7

P5431952

HOSE

- 14" long, control circuit

3шт.

8

P5431986

HOSE

- 39-3/8 long, control circuit

1шт.

9

P6531955

HOSE

- 24-13/16" long, control circuit

2шт.

10

P6531954

HOSE

- 14" long, control circuit

1шт.

11

P937295

TEE

- street

3шт.

12

P1737018

ANGLE

ELBOW - 90 degree

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - travel speed limiter, see Figure 8-116

1шт.

14

P3237544

UNION

ADAPTER - straight

1шт.

15

P2230418

SEAL

O-RING - adapter

1шт.

16

P4037552

UNION

ADAPTER - straight

1шт.

17

P32878

SCREW

RESTRICTOR - hydraulic line

1шт.

18

P4037596

UNION

ADAPTER - straight

2шт.

19

P7046042

SEAL

- adapter

3шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulating, see Figure 8-118

1шт.

21

P733038

SCREW

BOLT - hex head, 6 mm x 40 mm

2шт.

22

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

23

P8147669

PIPE

TUBE - valve bypass

1шт.

24

P4343348

VALVE POPPET

VALVE - check (Replaces P3743360), Includes: Ref. 25

1шт.

25

P7046042

SEAL

- check valve

1шт.

26

P4037548

UNION

COUPLING - adapter

1шт.

27

P6947192

PIPE

TUBE - bypass, at tee

1шт.

28

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, see Figure 8-198 for, Serial Range: adapters-hoses

1шт.

29

P2036942

SUPPORT

RETAINER - control circuit hoses

10шт.

30

P336923

CLAMP

TIE STRAP - circuit hoses, 4-5/8" long

1шт.

31

P51946

CLAMP

TIE STRAP - circuit hoses, 10-1/8" long

1шт.

32

P2537447

PLUG

- manifold block, Includes: Ref. 33

4шт.

33

P7046042

SEAL

- plug

1шт.

P937266

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

34

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

35

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check, Includes: Ref. 36

1шт.

36

P7046042

SEAL

- disconnect

1шт.

37

P3237554

FITTING

ADAPTER - valve assembly to disconnect assembly

1шт.

P7046042

SEAL

- adapter, not shown

1шт.

38

P133865

SCREW

BOLT - hex head, 8 mm x 60 mm

2шт.

39

P3528794

WASHER

SPACER - bolt, 6 mm thick

4шт.

40

P234587

NUT

RETAINER - bolt, sleeve type

2шт.
