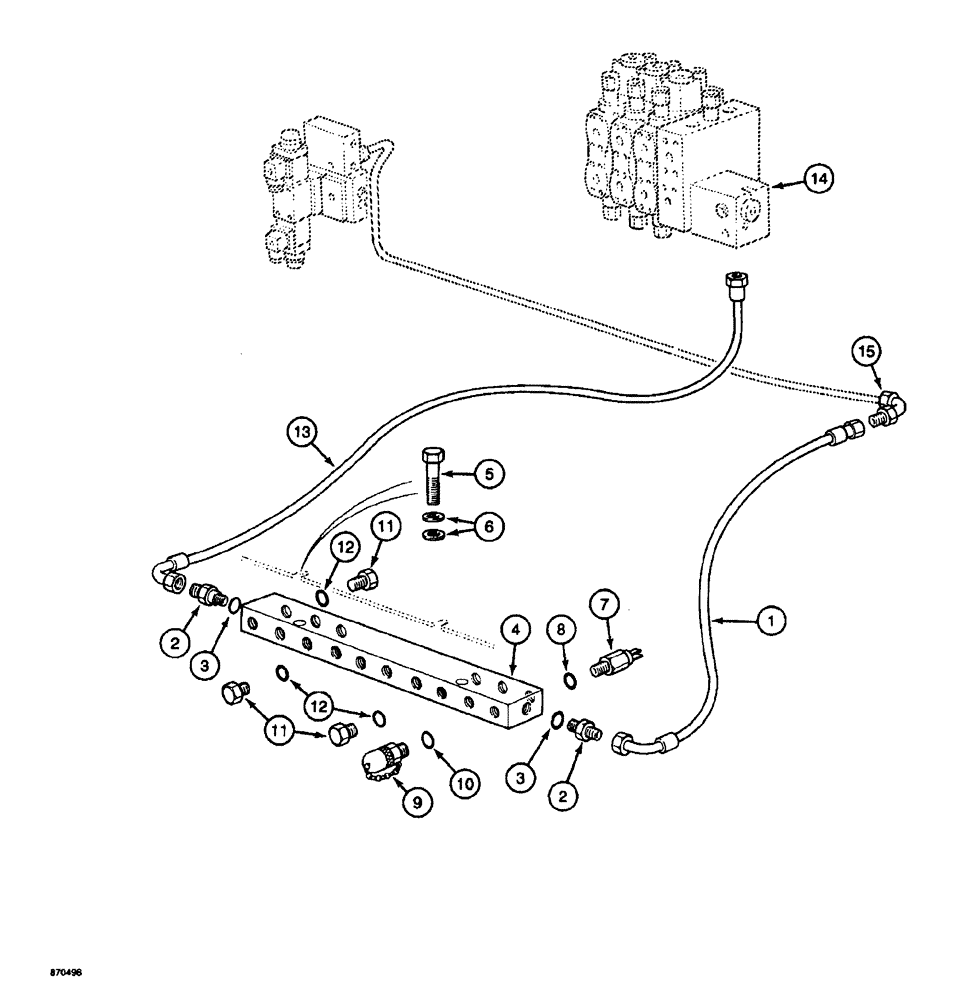

Запчасти Case 688 (8-098) - HYDRAULIC CONTROL CIRCUIT, AT MANIFOLD BLOCK (08) - HYDRAULICS

1

P5431958

HOSE

- 35-7/16" long, control circuit at block

1шт.

2

P3237532

UNION

ADAPTER - straight, Includes: Ref. 3

2шт.

3

P2230418

SEAL

O-RING - adapter

1шт.

4

P3837785

BLOCK ASSY.

BLOCK - manifold, control circuit hoses

1шт.

5

BOLT - hex head, 6 mm x 25 mm

2шт.

6

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

7

P1241850

ELECTRO/HYD CONTACT

SWITCH - low circuit pressure lamp

1шт.

8

P45298

WASHER, SEALING

SEAL - switch

1шт.

9

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check, Includes: Ref. 10

1шт.

10

P7046042

SEAL

- disconnect

1шт.

11

P2537447

PLUG

- manifold block, Includes: Ref. 12

3шт.

12

P7046042

SEAL

- plug

1шт.

13

P5431959

HOSE

- 49-1/4" long, to attachment valve block

1шт.

14

REF

INSTRUCTION

BLOCK ASSEMBLY - attachment control valve, see Figure 8-80 for, Serial Range: adapter-hose

1шт.

15

REF

INSTRUCTION

ELBOW - 90 degree, see Figures 8-68 & 8-70 for control circuit from solenoid valve

1шт.
