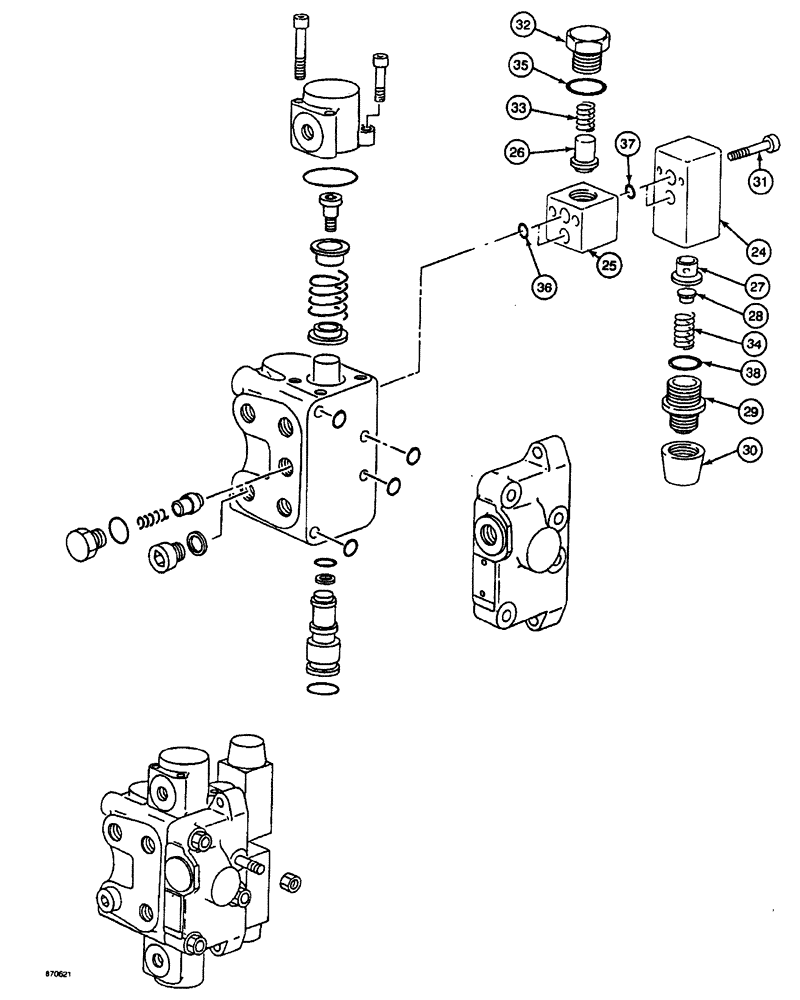

Запчасти Case 688 (8-096) - SWING CONTROL VALVE (08) - HYDRAULICS

P2643606

BOX

RELIEF VALVE ASSEMBLY - swing control, Includes: Ref. 24 - 34

2шт.

24

NSS

NOT SOLD SEPARAT

BLOCK - relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK - relief valve

1шт.

26

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

27

NSS

NOT SOLD SEPARAT

GUIDE - relief valve

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - plunger

1шт.

30

NSS

NOT SOLD SEPARAT

COVER - body

1шт.

31

P1532910

SCREW

BOLT - hex socket head, 6 mm x 75 mm

2шт.

32

P2537443

PLUG

- relief valve

1шт.

33

P38277

SPRING

- relief valve

1шт.

34

P38278

SPRING

- plunger

1шт.

P3749656

SEAL PACKAGE

KIT - repair seal, Includes: Ref. 35 - 38

2шт.

35

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: block-body

2шт.

37

NSS

NOT SOLD SEPARAT

O-RING - block

2шт.

38

NSS

NOT SOLD SEPARAT

O-RING - body

1шт.
