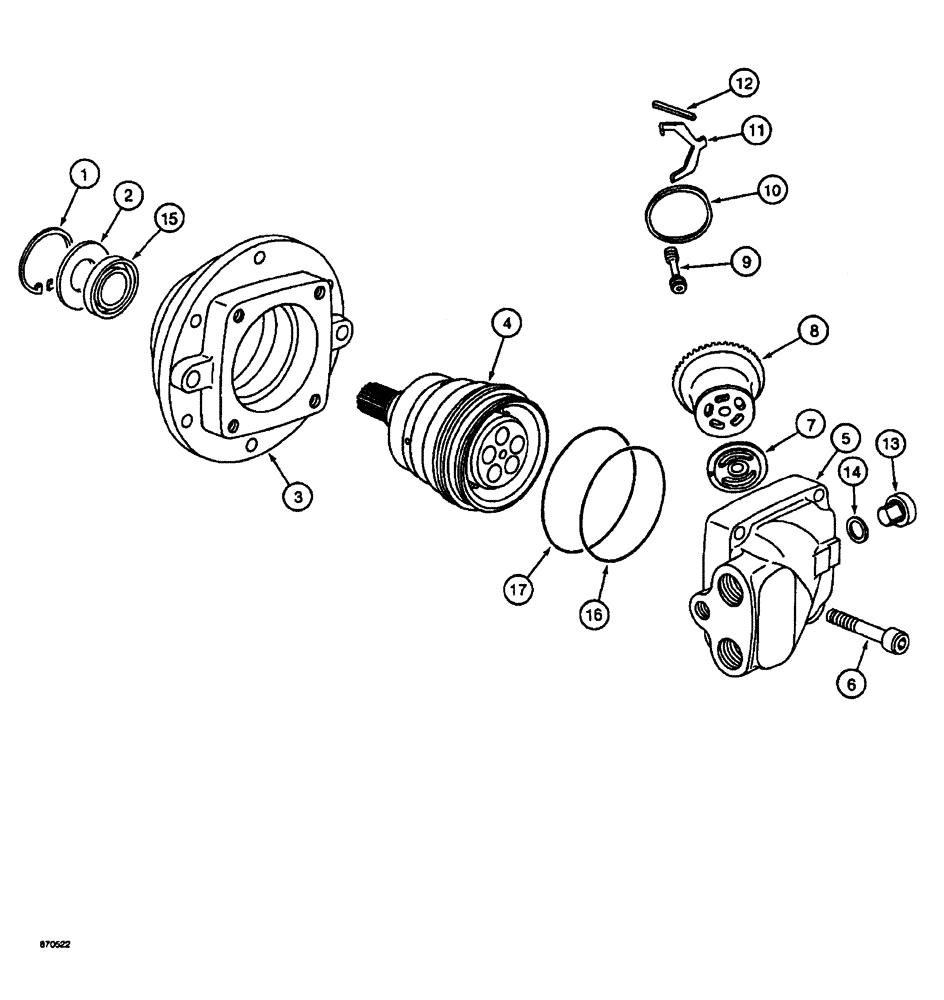

Запчасти Case 688 (8-092) - TRACK DRIVE AND SWING HYDRAULIC MOTOR (08) - HYDRAULICS

P2343765

MOTOR, HYDRAULIC

HYDRAULIC MOTOR ASSEMBLY - track drive and swing, Includes: Ref. 1 - 17

1шт.

1

P936325

RING, SNAP

SNAP RING - washer retaining

1шт.

2

P1945345

WASHER

- seal retaining

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - motor, front

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - motor

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - motor, rear

1шт.

6

P1332953

SCREW

BOLT - hex socket head, 10 mm x 45 mm, grade 10.9

4шт.

7

P6546296

ELEC SUPPORT PLATE

PLATE - valve

1шт.

8

P1030005

LOCK, CYLINDER

BLOCK - cylinder

1шт.

9

P1729867

PISTON

- cylinder block

5шт.

10

NSS

NOT SOLD SEPARAT

RING - cylinder block

1шт.

11

NSS

NOT SOLD SEPARAT

SPIRNG - cylinder block

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - cylinder block

1шт.

13

P3037428

PLUG

- rear housing

1шт.

14

P1245274

WASHER

SEAL - plug

1шт.

P3749695

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 15 - 17

1шт.

15

P3749695

SEAL PACKAGE

SEAL - shaft, front housing

1шт.

Ref #15 - 62 mm O.D. X 40 mm I.D. X .6 mm Thk

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, small

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, large

1шт.
