(8-088) - ATTACHMENT CONTROL VALVE BLOCK

Запчасти Case 688 (8-088) - ATTACHMENT CONTROL VALVE BLOCK (08) - HYDRAULICS

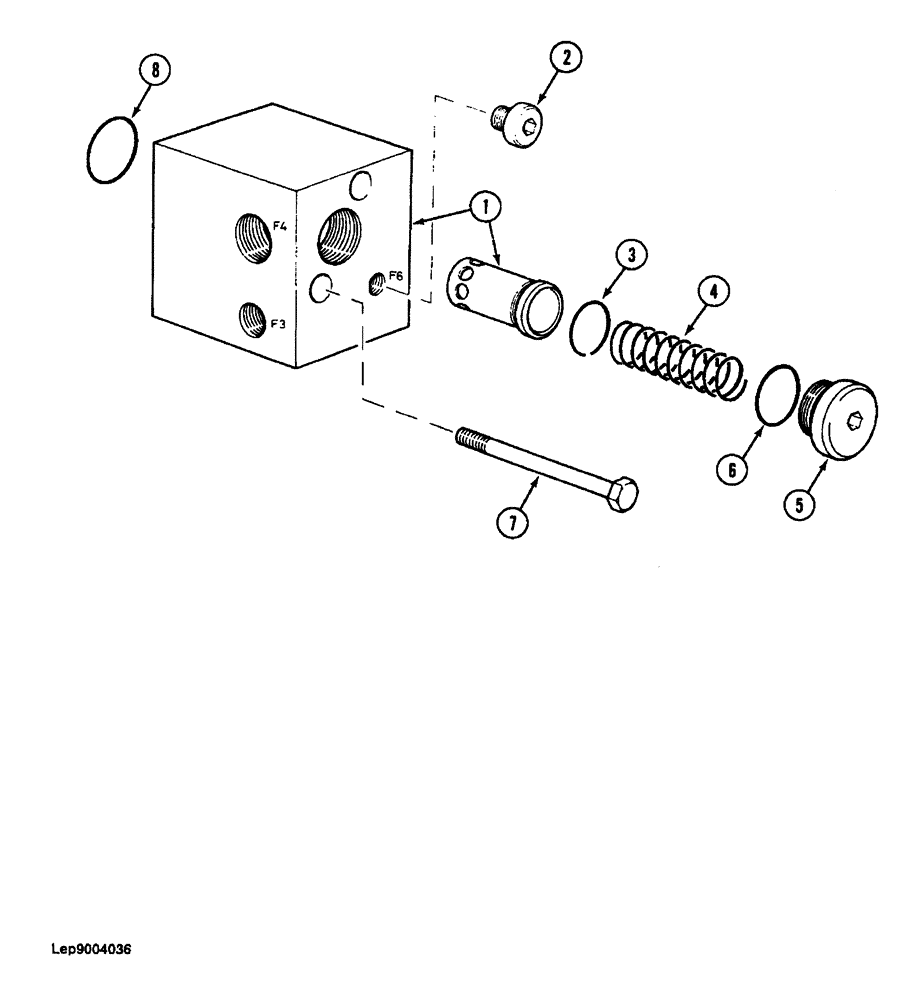

Схема запчастей Case 688 - (8-088) - ATTACHMENT CONTROL VALVE BLOCK (08) - HYDRAULICS
1
5
7
2
4
8
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P4943334

SHIN

BLOCK ASSEMBLY - attachment control valve (Replaces P2643374), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - attachment control valve

1шт.

2

P2537447

PLUG

- body

1шт.

P7046042

SEAL

- plug

1шт.

3

P936368

SPECIAL RING

SNAP RING - poppet

1шт.

4

P1038280

SPRING

- poppet

1шт.

5

P3337496

PLUG

- valve block

1шт.

6

P630442

O-RING

- plug

1шт.

7

P933879

SCREW

BOLT - hex, 10 mm x 130 mm

2шт.

8

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- block

1шт.
