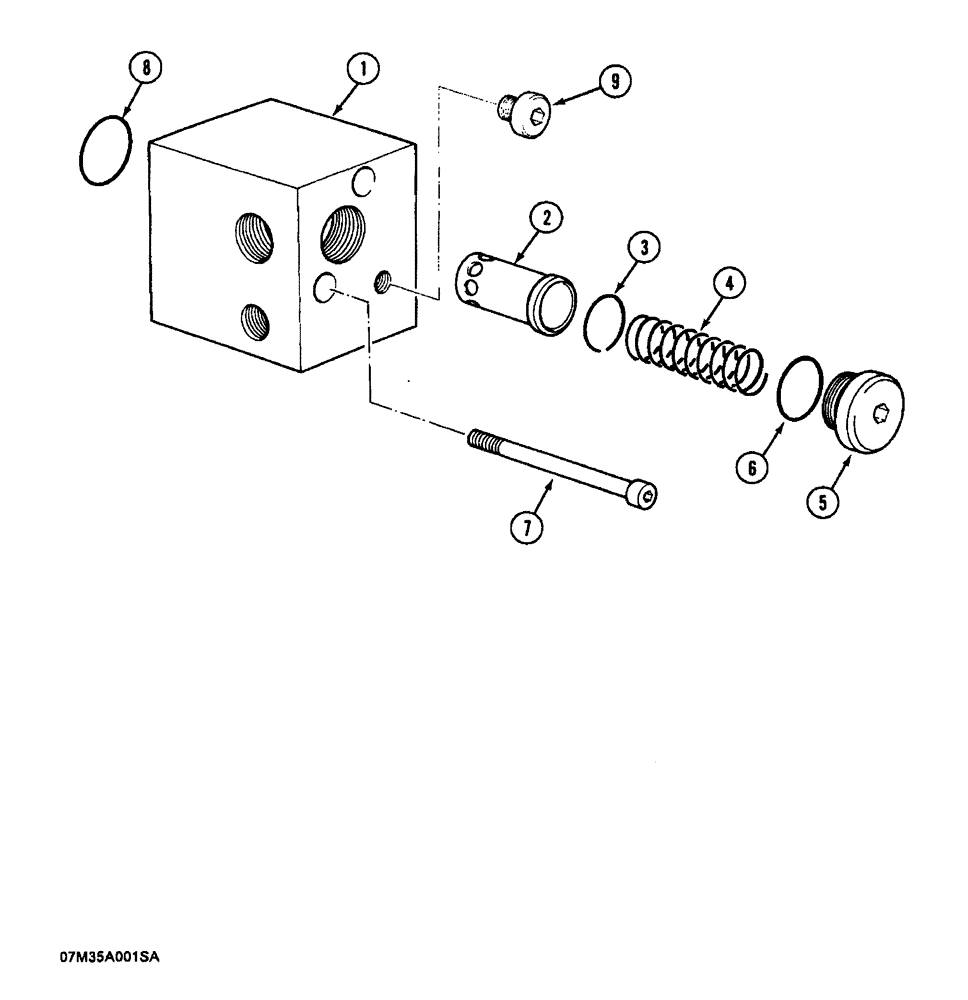

Запчасти Case 688 (8-086) - ATTACHMENT CONTROL VALVE BLOCK (08) - HYDRAULICS

P2643374

BLOCK ASSY.

BLOCK ASSEMBLY - attachment control valve (Order P4943334, See Figure 8-88), Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - attachment control valve

1шт.

2

P4043330

VALVE POPPET

POPPET - control vavle block

1шт.

3

P936345

SPECIAL RING

SNAP RING - poppet

1шт.

4

P1038235

SPRING

- poppet

1шт.

5

P3237460

PLUG

- valve block

1шт.

6

P630442

O-RING

- block

1шт.

7

P732976

SCREW

BOLT - hex socket, 10 mm x 110 mm, grade 10.9

2шт.

8

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- plug

1шт.

9

P2537447

PLUG

- body

1шт.

P7046042

SEAL

- plug

1шт.
