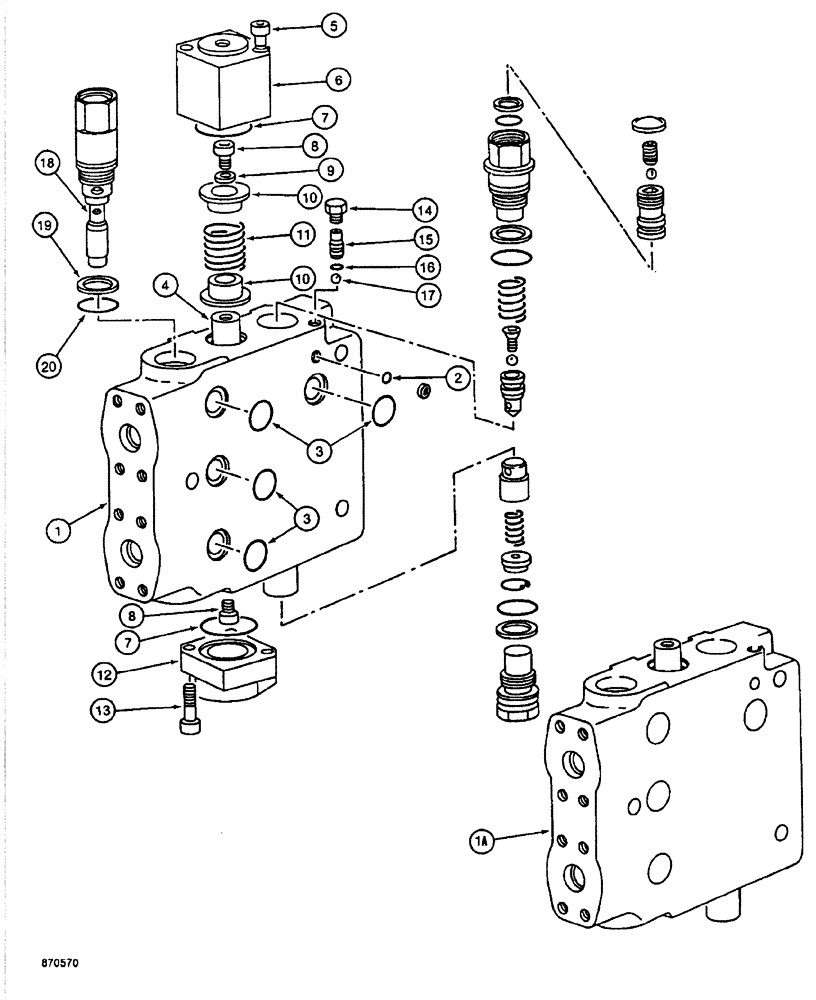

Запчасти Case 688 (8-082) - ATTACHMENT CONTROL VALVE, BOOM, ARM AND TOOL SECTIONS (08) - HYDRAULICS

P3143621

DISTRIBUTOR

TOOL SECTION ASSEMBLY - attachment control valve

1шт.

P3143622

DISTRIBUTOR

ARM SECTION ASSEMBLY - attachment control valve, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - boom and tool sections

1шт.

1a

NSS

NOT SOLD SEPARAT

BODY - attachment control valve, used with arm section

1шт.

2

P2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- small, used with boom and tool sections only

1шт.

3

P2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- large, used with boom and tool sections only

4шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - attachment control valve

1шт.

5

931527R1

HEX SOC SCREW,M8 x 65mm, Cl 10.9

2шт.

6

P2340462

CAP

- spool end

1шт.

7

P2230464

O-RING

- spool end cap

2шт.

8

P1432932

SCREW

BOLT - hex socket head, 8 mm x 10 mm, grade 10.9

2шт.

9

P1945382

WASHER

- flat, special

1шт.

10

P7646228

CUPEL

SEAT - spring

2шт.

11

P38295

SPRING

- spool

1шт.

12

P2340463

CAP

- spool end

1шт.

13

P732909

SCREW

BOLT - hex socket head, 8 mm x 25 mm, grade 10.9

2шт.

14

P3037405

PLUG

- check valve

1шт.

15

P729780

SEAT

PISTON - check valve, used with bool and tool sections only

1шт.

16

P2930401

O-RING

- piston, used with boom and tool sections only

1шт.

17

P31002

BALL

- check, used with boom and tool sections only

1шт.

P3143676

VALVE, PRESSURE RELI

CIRCUIT RELIEF VALVE ASSEMBLY - attachment control valve section, Includes: Ref. 18 - 20

2шт.

18

NSS

NOT SOLD SEPARAT

CIRCUIT RELIEF VALVE - valve section

1шт.

19

P1245232

RING

BACKUP RING - seal

1шт.

20

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- relief valve body

1шт.
