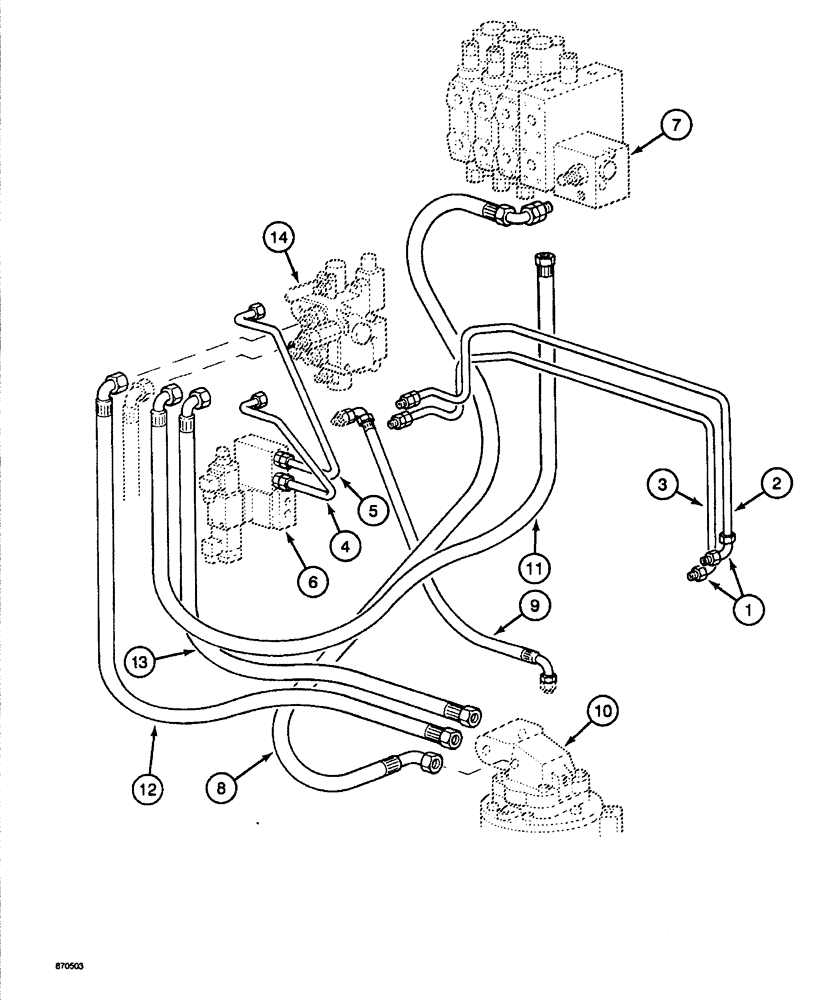

Запчасти Case 688 (8-076) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

P1737008

ANGLE

ELBOW - 90 degree

2шт.

2

P6149197

PIPE

TUBE - control circuit, upper port of solenoid valve block

1шт.

3

P6149196

PIPE

TUBE - control circuit, lower port of solenoid valve block

1шт.

4

P6049028

PIPE

TUBE - control circuit, block to lower port of swing control valve

1шт.

5

P6049027

PIPE

TUBE - control circuit, block to upper port of swing control valve

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid control, see Figure 8-90 for adapters to tubes and hoses

1шт.

7

REF

INSTRUCTION

BLOCK - attachment control valve, see Figure 8-80 for adapters to hoses and tubes

1шт.

8

P5431964

HOSE

- 24-13/16" long, block to swing motor

1шт.

9

P6531955

HOSE

- 24-13/16" long, solenoid valve to swing motor

1шт.

10

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, see Figure 8-92 for, Serial Range: adapters-hoses

1шт.

11

P5431966

HOSE

- 39-3/8" long, return, swing control valve to attachment valve

1шт.

12

P5931924

HOSE

- 19-11/16" long, upper port of swing control valve to swing motor

1шт.

13

P5431967

HOSE

- 24-13/16"long, lower port of swing control valve to swing motor

1шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - swing motor control, see Figure 8-94 & 8-96 for adapters to tubes and hoses

1шт.
