(8-066) - HYDRAULIC ADAPTERS, SWIVEL AND SWING MOTOR

Запчасти Case 688 (8-066) - HYDRAULIC ADAPTERS, SWIVEL AND SWING MOTOR (08) - HYDRAULICS

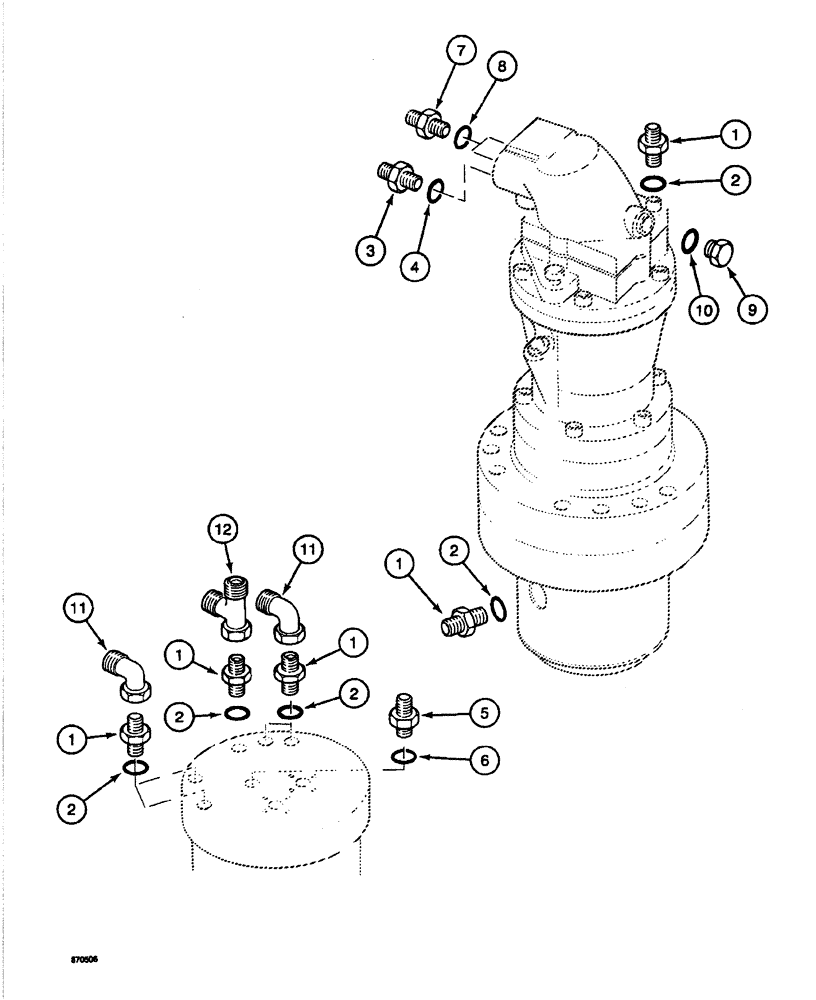

Схема запчастей Case 688 - (8-066) - HYDRAULIC ADAPTERS, SWIVEL AND SWING MOTOR (08) - HYDRAULICS
1
2
11
12
7
2
3
1
9
4
1
2
1
1
2
8
5
11
6
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P3237530

UNION

ADAPTER - straight, Includes: Ref. 2

7шт.

2

P7046042

SEAL

- adapter

1шт.

3

P3237532

UNION

ADAPTER - straight, Includes: Ref. 4

1шт.

4

P2230418

SEAL

- adapter

1шт.

5

P3237582

FITTING

ADAPTER - straight, barb hose type

1шт.

6

P5746063

SEAL

- adapter

1шт.

7

P3237533

UNION

ADAPTER - straight, Includes: Ref. 8

2шт.

8

P1145268

SEAL

- adapter

1шт.

9

P2537447

PLUG

- solenoid valve block, Includes: Ref. 10

1шт.

10

P7046042

SEAL

- adapter

1шт.

11

P1737018

ANGLE

ELBOW - 90 degree

4шт.

12

P937295

TEE

- street

1шт.
