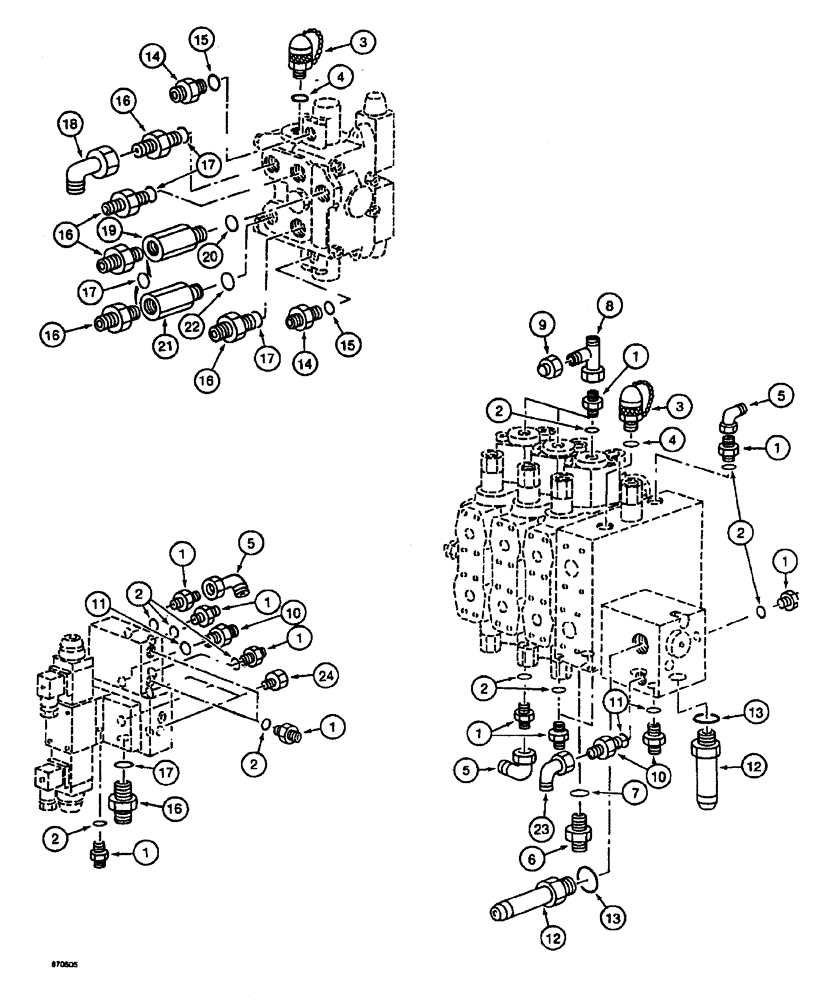

Запчасти Case 688 (8-064) - HYDRAULIC ADAPTERS, SWING, ATTACHMENT, AND SOLENOID CONTROL VALVES (08) - HYDRAULICS

1

P3237530

UNION

ADAPTER - straight, Includes: Ref. 2

14шт.

2

P7046042

SEAL

- adapter

1шт.

3

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check, Includes: Ref. 4

2шт.

4

P7046042

SEAL

- adapter

1шт.

5

P1737018

ANGLE

ELBOW - 90 degree

2шт.

6

P3237533

UNION

ADAPTER - straight, Includes: Ref. 7

1шт.

7

P1145268

SEAL

- adapter

1шт.

8

P937295

TEE

- street

2шт.

9

P2537406

BLANK-OFF PLUG

CAP - tee

2шт.

10

P3237532

UNION

ADAPTER - straight, Includes: Ref. 11

3шт.

11

P2230418

SEAL

O-RING - adapter

1шт.

12

P3237582

FITTING

ADAPTER - straight, barb hose type, Includes: Ref. 13

2шт.

13

P5746063

SEAL

- adapter

1шт.

14

P2643388

VALVE POPPET

ADAPTER - straight, with restrictor, Includes: Ref. 15

2шт.

15

P7046042

SEAL

- adapter

1шт.

16

P3237533

UNION

ADAPTER - straight

6шт.

17

P1145268

SEAL

- adapter

1шт.

18

P1737021

ANGLE

ELBOW - 90 degree

1шт.

19

P2643354

VALVE POPPET

ADAPTER - special, restrictor

1шт.

20

P5746063

SEAL

- adapter

1шт.

21

P2643355

VALVE POPPET

ADAPTER - special, restrictor

1шт.

22

P5746063

SEAL

- adapter

1шт.

23

P1737020

ANGLE

ELBOW - 90 degree

1шт.

24

P2537447

PLUG

- solenoid valve block

4шт.

P7046042

SEAL

- adapter

1шт.
