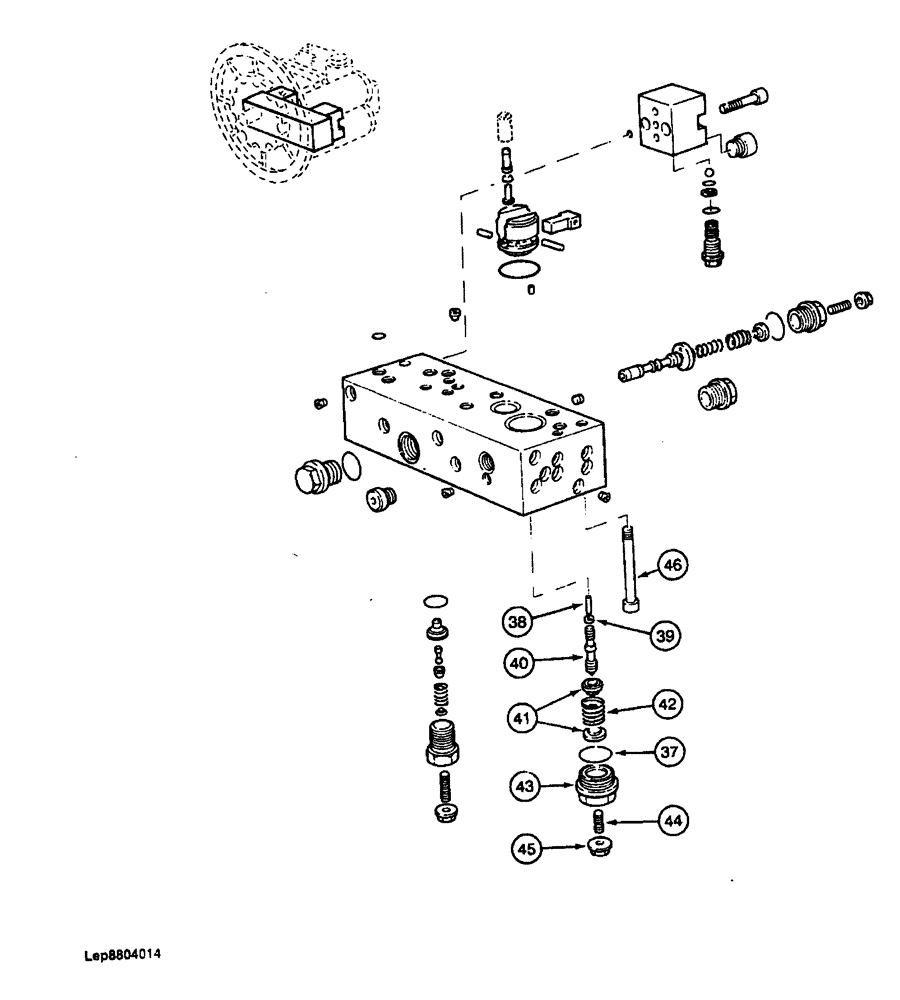

Запчасти Case 688 (8-056) - HIGH PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

P2843544

PUMP

HYDRAULIC PUMP ASSEMBLY - high pressure, continued from previous Figure

1шт.

P5137792

GOVERNOR

REGULATOR BLOCK ASSEMBLY - hydraulic pump, Includes: Ref. 37 - 46, Start Serial: 852.05.0179

1шт.

37

P2930414

O-RING

- regulation valve

1шт.

38

P6027865

GUIDE

PIN - regulation valve

1шт.

39

P1929058

SKID/SHOE

SEAT - upper

1шт.

40

NSS

NOT SOLD SEPARAT

SPOOL - regulation valve

1шт.

41

P3628806

GUIDE

SEAT - spring

2шт.

42

P1038240

SPRING

- regulation

1шт.

43

P3237473

PLUG

- hex head, body

1шт.

44

P3533015

SCREW

- adjusting

1шт.

45

P2434535

NUT

- adjusting

1шт.

46

P632920

SCREW

BOLT - hex socket head, 6 mm x 80 mm, grade 10.9

5шт.

P5449643

SEAL PACKAGE

KIT- regulator seal including 2, 10, 15, 17, 20, 27, 28, 30, 37

1шт.
