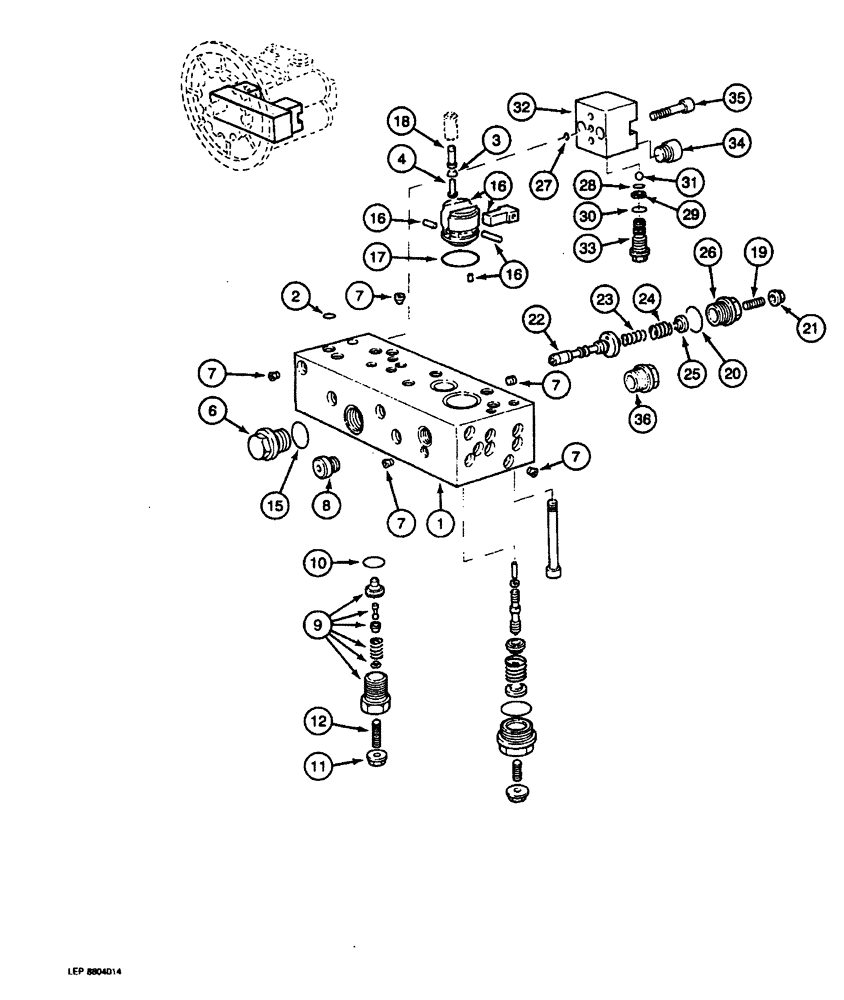

Запчасти Case 688 (8-054) - HIGH PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
P2843544
PUMP
HYDRAULIC PUMP ASSEMBLY - high pressure, continued from previous Figure, Includes: Ref. 1 - 36
1шт.
P5137792
GOVERNOR
REGULATOR BLOCK ASSEMBLY - hydraulic pump, Includes: Ref. 1 - 36, Start Serial: 852.7.05.0179
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - regulator
1шт.
2
P2930413
O-RING
- body
12шт.
3
P1929058
SKID/SHOE
WASHER - pilot valve guide
1шт.
4
P6027865
GUIDE
ROD - pilot valve guide
1шт.
6
P3337428
PLUG
- body, hex head
1шт.
7
P3037425
PLUG
- body, hex socket head, small
19шт.
8
P3037425
PLUG
- body, hex socket head, large
2шт.
9
P4343356
VALVE
- safety valve (Replaces P3743333), Includes: Ref. 10 - 12
2шт.
10
P930474
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
- safety valve
2шт.
11
P2434535
NUT
- adjusting screw
2шт.
12
P3533015
SCREW
- adjusting
2шт.
15
P130478
O-RING
- plug
1шт.
16
P5242756
LEVER
ASSEMBLY - pilot valve, Includes: Ref. 17
1шт.
17
P1230487
O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro
- lever assembly
1шт.
18
P1729841
PISTON
- pilot valve
1шт.
19
P3533015
SCREW
- adjusting
1шт.
20
P130478
O-RING
- regulation valve
1шт.
21
P2434535
NUT
- adjusting screw
1шт.
22
NSS
NOT SOLD SEPARAT
VALVE - spool
1шт.
23
P103824
SPRING - valve (Replaces P1298242)
1шт.
24
P1038241
SPRING
- valve
1шт.
25
P6027866
GUIDE
SEAL - retainer
1шт.
26
P3237474
PLUG
- valve
1шт.
P3743334
SELECTOR
CIRCUIT - , Includes: Ref. 27 - 33, Start Serial: 852.7.05.0179
1шт.
27
P2930413
O-RING
- selector
3шт.
28
P730371
O-RING
- selector
1шт.
29
P1744301
WASHER
RETAINER - selector
1шт.
30
P2930416
O-RING
- selector
1шт.
31
P31040
BALL
- selector
1шт.
32
NSS
NOT SOLD SEPARAT
BLOCK - selector circuit
1шт.
33
NSS
NOT SOLD SEPARAT
VALVE - selector circuit
1шт.
34
P3037423
PLUG
- selector
2шт.
35
P732980
SCREW
BOLT - hex socket hed, 8 mm x 40 mm, grade 10.9
2шт.
36
P3037423
PLUG
- body
1шт.
Выбрано товаров: 36
