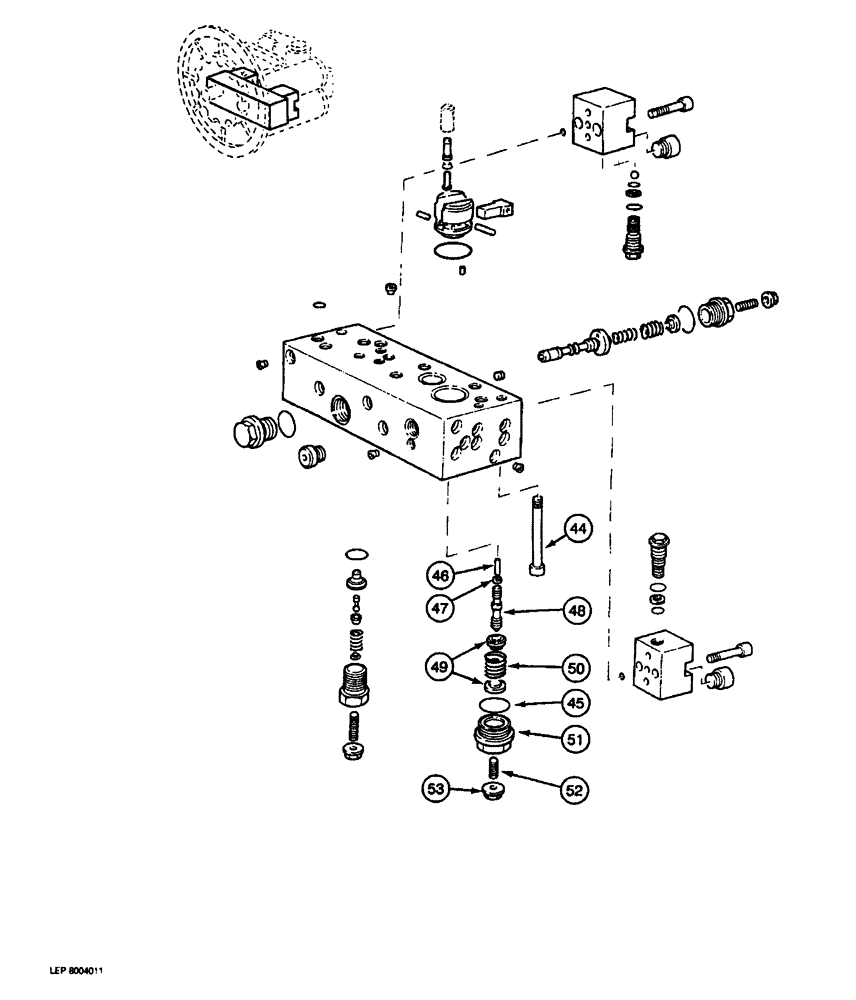

Запчасти Case 688 (8-052) - HIGH PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

P2843544

PUMP

HYDRAULIC PUMP ASSEMBLY - high pressure, continued from previous Figure, Includes: Ref. 44- 53

1шт.

NSS

NOT SOLD SEPARAT

REGULATOR BLOCK ASSEMBLY - hydraulic pump (from 852 serial 09/86 to 852.7.05.0178, order P51377925 and 3950164), Includes: Ref. 44 - 53

1шт.

44

P632920

SCREW

BOLT - hex socket head, 6 mm x 80 mm, grade 10.9

5шт.

45

P2930414

O-RING

- regulation valve

1шт.

46

P6027865

GUIDE

PIN - regulation valve

1шт.

47

P1929058

SKID/SHOE

SEAT - upper

1шт.

48

NSS

NOT SOLD SEPARAT

SPOOL - regulation valve

1шт.

49

P3628806

GUIDE

SEAT - spring

2шт.

50

P1038240

SPRING

- regulation valve

1шт.

51

P3237473

PLUG

- hex head, body

1шт.

52

P3533015

SCREW

- adjusting

1шт.

53

P2434535

NUT

- adjusting

1шт.

P5449643

SEAL PACKAGE

KIT- regulator seal including rep 2, 10, 15, 17, 20, 27, 28, 30, 36, 37, 39, 45

1шт.
