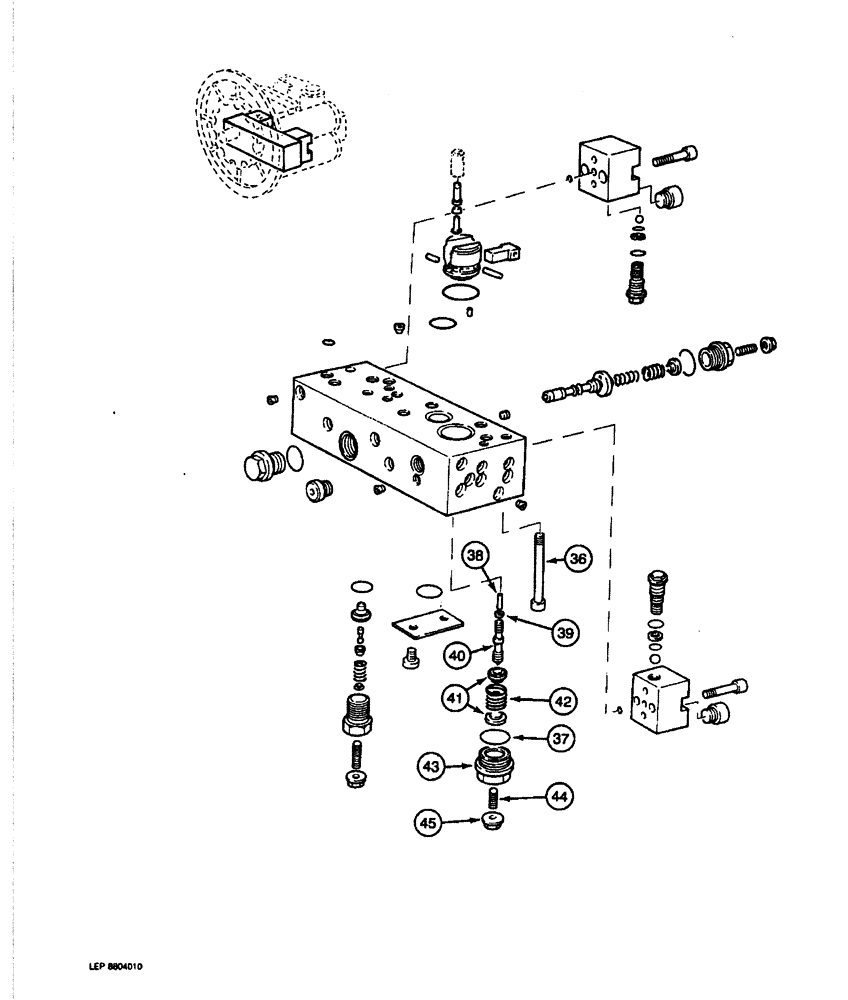

Запчасти Case 688 (8-048) - HIGH PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

P2843544

PUMP

HYDRAULIC PUMP ASSEMBLY - high pressure, continued from previous Figure REGULATOR BLOCK ASSEMBLY - hydraulic pump (to serial number 852 serial 08/86 order P5137792 and P3950164)

1шт.

36

P632920

SCREW

BOLT - hex socket head, 6 mm x 80 mm, grade 10.9

5шт.

P3743330

VALVE

REGULATION VALVE ASSEMBLY - pump assembly , Includes: Ref. 37 - 45, Serial Range: -852.6.03.9999

2шт.

37

P2930414

O-RING

- regulation valve

1шт.

38

P6027865

GUIDE

PIN - regulation valve

1шт.

39

P1929058

SKID/SHOE

SEAT - upper

1шт.

40

NSS

NOT SOLD SEPARAT

SPOOL - regulation valve

1шт.

41

P3628806

GUIDE

SEAT - spring

2шт.

42

P1038240

SPRING

- regualtion valve

1шт.

43

P3237473

PLUG

- hex head, body

1шт.

44

P3533015

SCREW

- adjusting

1шт.

45

P2434535

NUT

- adjusting

1шт.

P5449643

SEAL PACKAGE

KIT - regulator seal including rep 2, 5, 10, 15, 17, 20, 27, 28, 30, 37

1шт.
