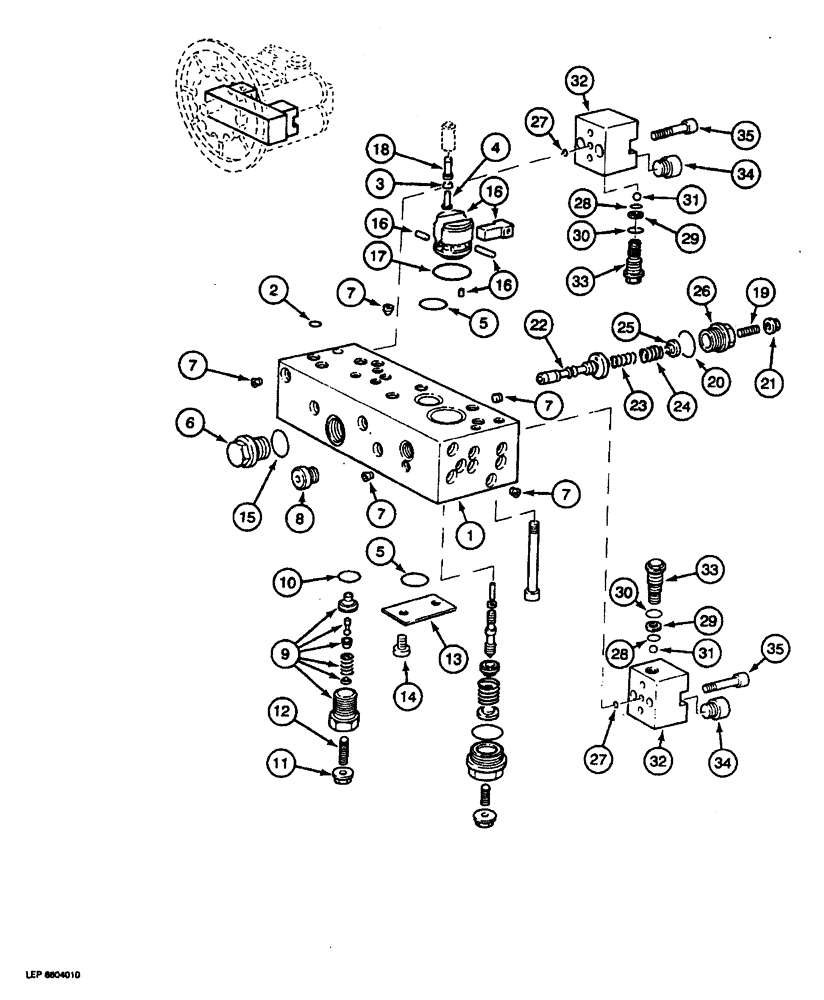

Запчасти Case 688 (8-046) - HIGH PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

P2843544

PUMP

HYDRAULIC PUMP ASSEMBLY - high pressure, continued from previous Figure, Includes: Ref. 1 - 35

1шт.

NSS

NOT SOLD SEPARAT

REGULATOR BLOCK ASSEMBLY - hydraulic pump ( to serial number 852 serial 08/86 order P5137792 and P3950164), Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - regulator

1шт.

2

P2930413

O-RING

- body

12шт.

3

P1929058

SKID/SHOE

WASHER - pilot valve guide

1шт.

4

P6027865

GUIDE

ROD - piloat valve guide

1шт.

5

P2230459

O-RING

- body (to serial number 852 serial 08/86)

1шт.

6

P3337428

PLUG

- body, hex head

1шт.

7

P3037425

PLUG

- body, hex socket head, small

19шт.

8

P3037423

PLUG

- body, hex socket head, large

2шт.

9

P3743333

VALVE

- safety valve, Includes: Ref. 10 - 12

2шт.

10

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- safety valve

2шт.

11

P2434535

NUT

- adjusting screw

2шт.

12

P3533015

SCREW

- adjusting screw

1шт.

13

P4223319

LARGE PLATE

PLATE - valve retaining, not sold, Serial Range: -852.6.03.9999

1шт.

14

P1332947

SCREW

BOLT - hex socket head, 6 mm x 16 mm, grade 10.9, Serial Range: -852.6.03.9999

2шт.

15

P130478

O-RING

- plug

1шт.

16

P5242756

LEVER

ASSEMBLY - pilot valve, Includes: Ref. 17

1шт.

17

P1230487

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

- lever assembly

1шт.

18

P1729841

PISTON

- pilot valve

1шт.

19

P3533015

SCREW

- adjusting

1шт.

20

P130478

O-RING

- regulation valve

1шт.

21

P2434535

NUT

- adjusting screw

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - spool

1шт.

23

P1038242

SPRING

- valve

1шт.

24

P1038241

SPRING

- valve

1шт.

25

P6027866

GUIDE

SEAT - retainer

1шт.

26

P3237474

PLUG

LUG - valve, Includes: Ref. 27 - 33

1шт.

P3743334

SELECTOR

CIRCUIT - pump assembly

2шт.

27

P2930413

O-RING

- selector

3шт.

28

P730371

O-RING

- selector

1шт.

29

P1744301

WASHER

RETAINER - selector

1шт.

30

P2930416

O-RING

- selector

1шт.

31

P31040

BALL

- selector

1шт.

32

NSS

NOT SOLD SEPARAT

BLOCK - selector circuit

1шт.

33

NSS

NOT SOLD SEPARAT

VALVE - selector circuit

1шт.

34

P3037423

PLUG

- selector

3шт.

35

P732980

SCREW

BOLT - hex socket head, 8 mm x 40 mm, grade 10.9

4шт.
