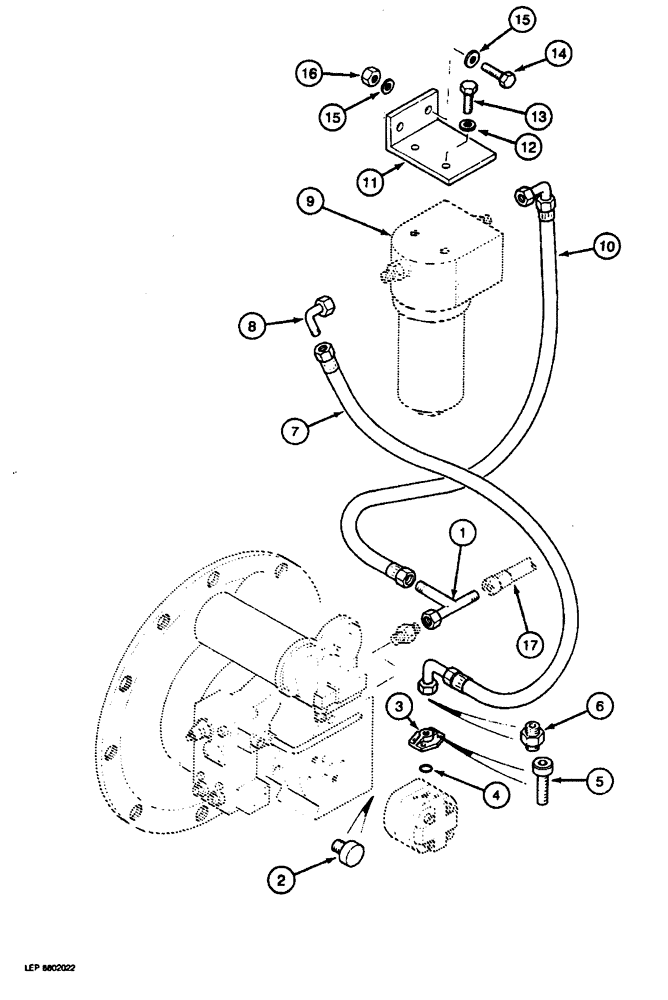

Запчасти Case 688 (8-034) - HYDRAULIC PUMP LINES, FILTER LINES, P.I.N. FROM 74417 TO 74485, 11501 AND AFTER (08) - HYDRAULICS

1

P937297

TEE

- street

1шт.

2

P8346274

PLUG - high pressure pump to low pressure pump

1шт.

P1030374

O-RING

SEAL - plug

1шт.

3

P5137766

SHIN

ADAPTER - straight, low pressure pump

1шт.

4

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL - adapter

1шт.

5

P32912

SCREW

BOLT - hex socket head, 6 mm x 25 mm

4шт.

6

P4037597

UNION

ADAPTER - straight

1шт.

P5746063

SEAL

- adapter

1шт.

7

P5431966

HOSE

- 39-3/8" long, low pressure, Serial Range: pump-filter

1шт.

8

P1737021

ANGLE

ELBOW - 90 degree

1шт.

9

REF

INSTRUCTION

FILTER ASSEMBLY - pressure, see Figure 8-36

1шт.

10

P6531978

HOSE

- 19-3/4" long, Serial Range: filter-tee

1шт.

11

P5225616

SUPPORT

BRACKET - filter support (if used)

1шт.

12

P3528794

WASHER

SPACER - bolt, 6 mm thick (if used)

2шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8 (If used)

2шт.

14

P933818

SCREW

BOLT - hex head, 10 mm x 40 mm, full thread (if used)

2шт.

15

P4328796

WASHER

SPACER - bolt, 7 mm thick (if used)

4шт.

16

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm (if used)

2шт.

17

REF

INSTRUCTION

HOSE - pressure, see Figure 8-32

1шт.
