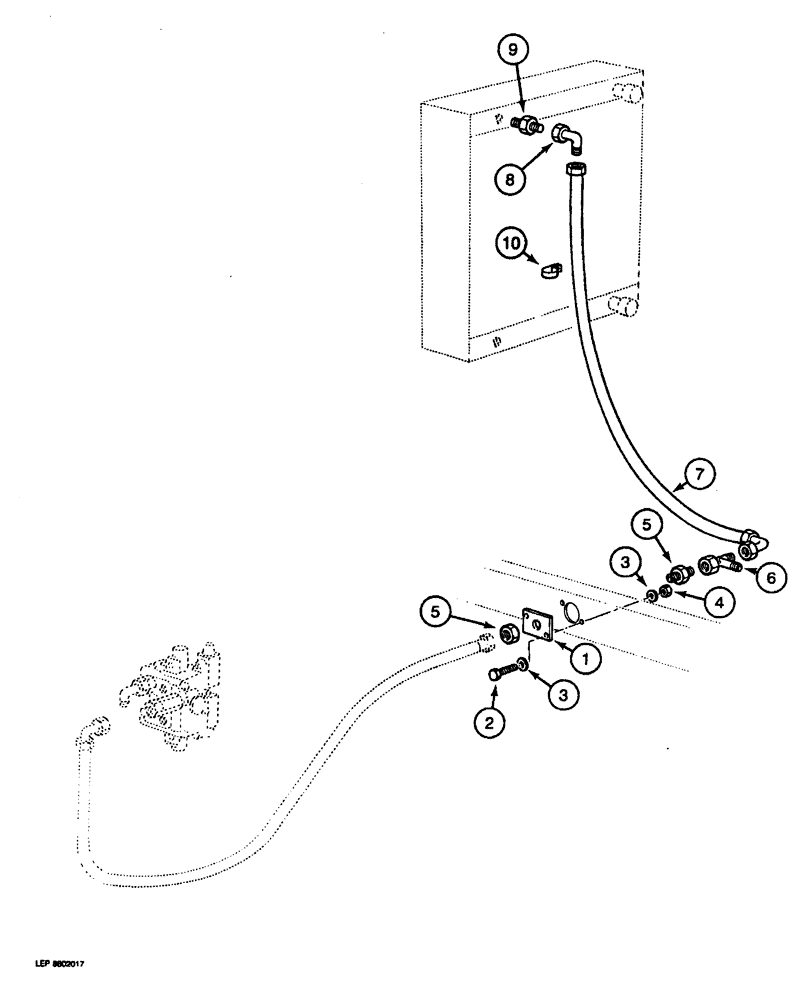

Запчасти Case 688 (8-020) - HYDRAULIC PUMP LINES, SWING VALVE RETURN LINE (08) - HYDRAULICS

1

P2023285

LARGE PLATE

BRACKET - mounting, adapter

1шт.

2

P933818

SCREW

BOLT - hex head, 10 mm x 40 mm

2шт.

3

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

4

P34598

SAFETY NUT

NUT - self-locking 10 mm

2шт.

5

P3237570

UNION

ADAPTER - bulkhead type, includes hex nut

1шт.

6

P937297

TEE

- return, to oil cooler

1шт.

7

P6531958

HOSE

- 31-1/2" long, return, at oil cooler

1шт.

8

P1737021

ANGLE

ELBOW - 90 degree

1шт.

9

P4037597

UNION

ADAPTER - straight

1шт.

P5746063

SEAL

- adapter

1шт.

10

P1536969

CLAMP

- hose, small

1шт.
