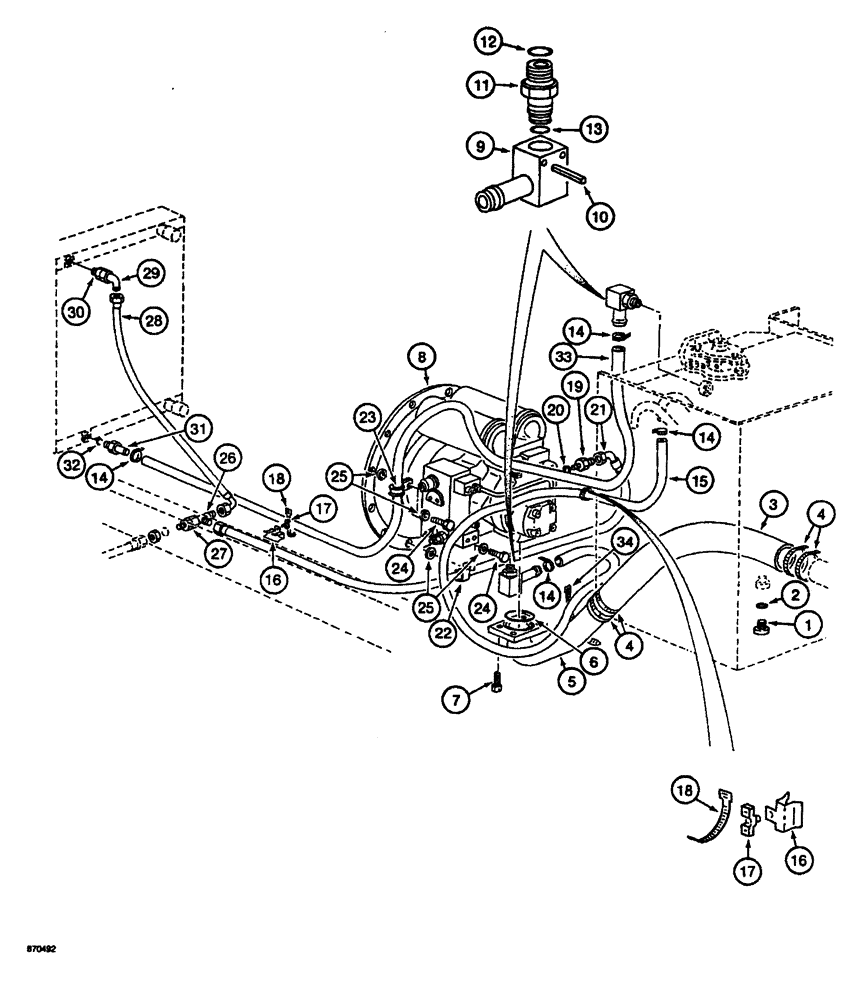

Запчасти Case 688 (8-016) - HYDRAULIC PUMP LINES, PRESSURE AND COOLER RETURN LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
P2537429
PLUG
- reservoir drain, Includes: Ref. 2
1шт.
2
P5746063
SEAL
- drain plug
1шт.
3
P131988
LARGE HOSE
HOSE - suctio, reservoir to tube at pump
1шт.
4
P136902
COLLAR CLAMP
CLAMP - suction hose
4шт.
5
P3450101
MANIFOLD
TUBE AND PLATE - suction, at pump
1шт.
6
P930454
O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro
- suctin tube
1шт.
7
P32941
SCREW
BOLT - hex socket head, 12 mm x 25 mm
4шт.
8
REF
INSTRUCTION
PUMP ASSEMBLY - main hydraulic, see Figure 8-14
1шт.
P5137722
FITTING
ADAPTER ASSEMBLY - return hoses, at pump and reservoir, Includes: Ref. 9 - 13
2шт.
9
P5137721
BODY
- adapter
1шт.
10
P35725
SPLIT PIN/SAFETY PIN
ROLL PIN - adapter body
2шт.
11
P4037541
LARGE PIN
ADAPTER - straight
1шт.
12
P5746063
SEAL
- adapter
1шт.
13
P430411
O-RING
- adapter
1шт.
14
P36998
COLLAR CLAMP
CLAMP - hose
4шт.
15
REF
INSTRUCTION
HOSE - return, pump reservoir, 49-1/4" long, cut from P1103635
1шт.
16
P2036902
CLASP
CLIP - retainer
2шт.
17
PP2036939
CLASP
RETAINER - tie strap
2шт.
18
P51946
CLAMP
TIE STRAP - hose, 10-1/8" long
2шт.
19
P3237533
UNION
ADAPTER - straight, Includes: Ref. 20
1шт.
20
P1145268
SEAL
- adapter
1шт.
21
P5431962
HOSE
- 55-1/8" long, Serial Range: return-tee
1шт.
22
P1536969
CLAMP
- hose, small
1шт.
23
P51959
CLAMP
- hose, large
1шт.
24
P833802
SCREW
BOLT - hex head, 10 mm x 50 mm
2шт.
25
P4328796
WASHER
SPACER - bolt, 7 mm thick
4шт.
26
P937297
TEE
- return, to oil cooler
1шт.
27
P3237570
UNION
ADAPTER - bulkhead type, includes hex nut
1шт.
28
P6531958
HOSE
- 31-1/2" long, return, at oil cooler
1шт.
29
P1737021
ANGLE
ELBOW - 90 degree
1шт.
30
P4037597
UNION
ADAPTER - straight
1шт.
31
P3237582
FITTING
ADAPATER - straight, barb hose type
1шт.
32
P5746063
SEAL
- adapter
1шт.
33
REF
INSTRUCTION
HOSE - cooler retrun, 78-3/4" long, cut from P1103635
1шт.
34
P136922
CLAMP
TIE STRAP - hose, 13-7/8" long
1шт.
