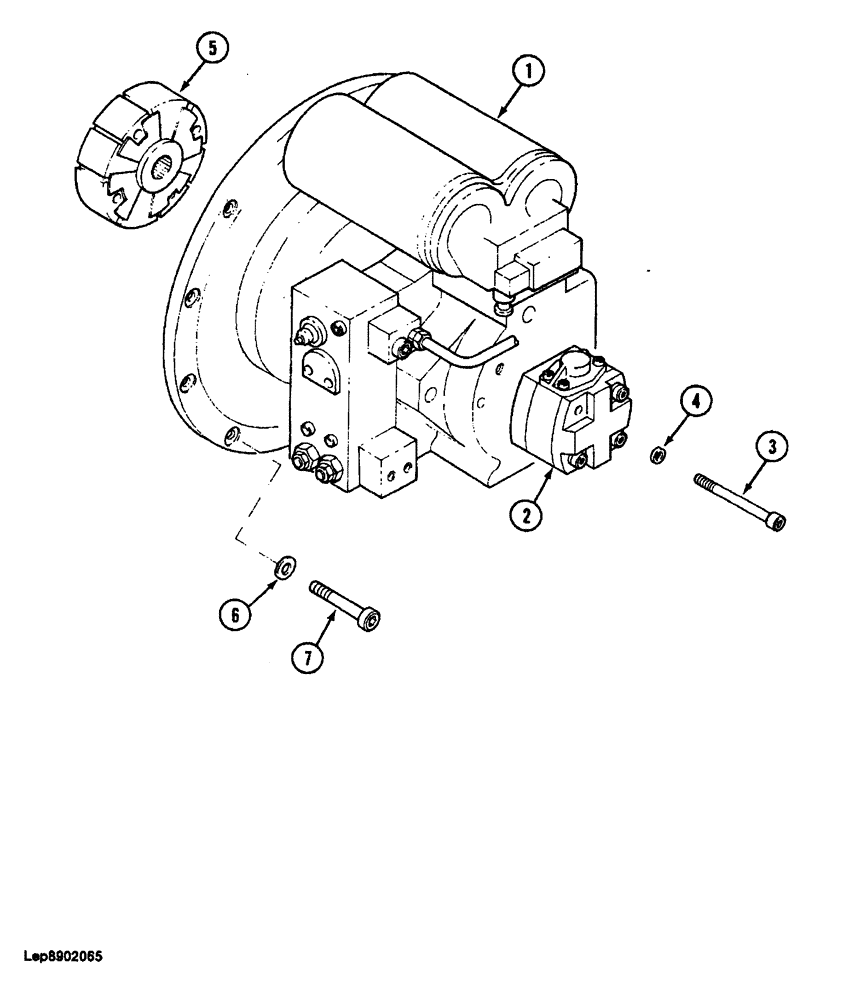

Запчасти Case 688 (8-014) - HIGH PRESSURE HYDRAULIC PUMP COUPLING (08) - HYDRAULICS

1

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - high pressure, see Figures 8-38 - 8-56

1шт.

2

REF

INSTRUCTION

HYDRAULIC PUMP ASSEMBLY - lower pressure, see Figure 8-58

1шт.

3

P32975

SCREW

BOLT - hex socket, 10 mm x 95 mm, pump mounting to high pressure pump body

2шт.

4

P1545410

WASHER

SPACER - bolt, 2 mm thick

2шт.

5

P6546257

COUPLING

- motor to main hydraulic pump

1шт.

6

P4328796

WASHER

SPACER - bolt, 7 mm thick

6шт.

7

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

7шт.
