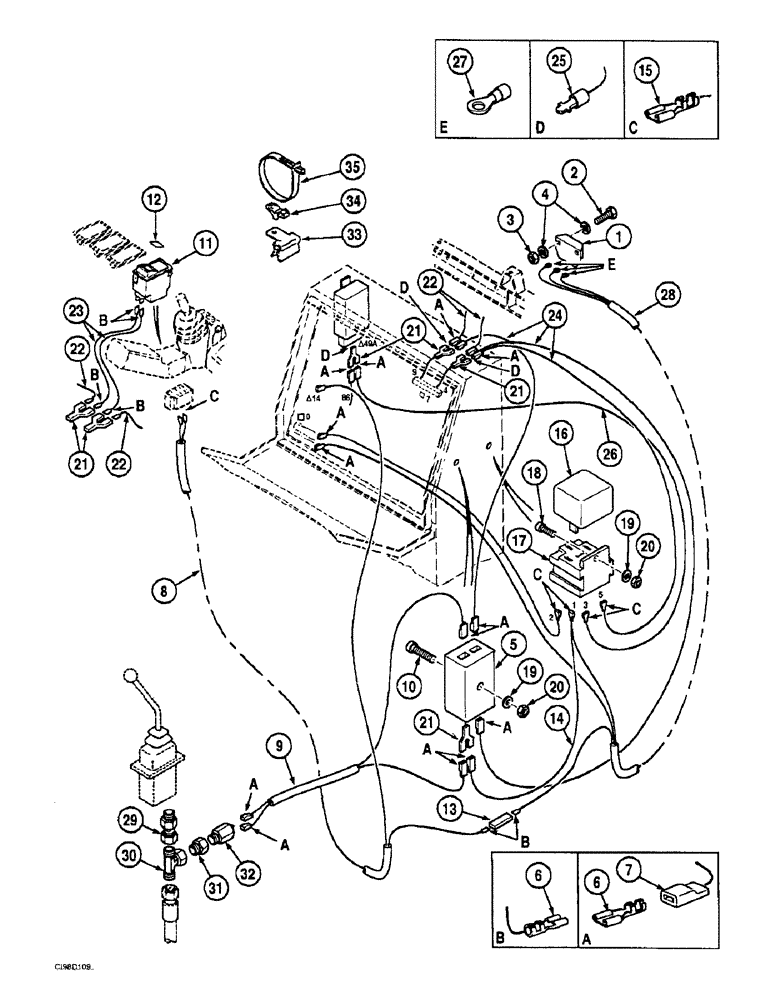

Запчасти Case 788 (2-22) - BACKUP AUDIBLE WARNING DEVICE, 588P, 788P, 988P 1188P

1

A4243270

BUZZER

Buzzer

1шт.

2

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

3

43362

NUT,M8 x 1.25, Cl 10

2шт.

4

W3528795

WASHER

10,25 x 7 x 25

4шт.

5

U1340711

CASE

Box

1шт.

6

G2036955

CLIP,ELECTRICAL

20шт.

7

Q1540485

ELECTRIC INSULATION

Isolator

14шт.

8

M4565

CABLE

2x1,5mm Length : 2000 mm (78-3/4 in) Order Quantity : 2

1шт.

9

M4565

CABLE

2x1,5mm Length : 1000 mm (39-3/8 in)

1шт.

10

U32540

SCREW,Flat Csk Hd, M5 x 25

1шт.

11

R2141246

SWITCH

Rocker

1шт.

12

P2851576

TAG

Symbol

1шт.

13

L1947259

CABLE EXTENSION

1шт.

14

V31253

ELECTRICAL WIRE

WIRE 1,50mm2 Length : 150 mm (67 in) Order Quantity : 1

1шт.

15

E640945

CLIP,ELECTRICAL

6шт.

16

L3041116

RELAY,24V, 20A

24V

1шт.

17

A40710

KIT

1шт.

18

S32538

SCREW,Sltd Truss Hd, M5 x 16

1шт.

19

P34605

WASHER

M5 U

2шт.

20

V834574

SAFETY NUT

M5

2шт.

21

A640964

FITTING

6шт.

22

REF

INSTRUCTION

Circuit, Electrical

1шт.

23

V31253

ELECTRICAL WIRE

WIRE 1,50mm2 Length : 2000 mm (78-3/4 in) Order Quantity : 2

1шт.

24

V31253

ELECTRICAL WIRE

WIRE 1,50mm2 Length : 400 mm (15-3/4 in) Order Quantity : 1

1шт.

25

Z640963

CONNECTION

Tab

3шт.

26

V31253

ELECTRICAL WIRE

WIRE 1,50mm2 Length : 800 mm (31-1/2 in) Order Quantity

1шт.

27

K40926

TERMINAL CONNECTOR

dia 5

3шт.

28

V4573

CABLE

3x1,5mm Length : 4000 mm (157-1/2 in) Order Quantity : 4

1шт.

29

F3237554

FITTING

M14 x 1,5

1шт.

R7046042

GASKET

Seal 11,5 x 16,5 x 1,5

1шт.

30

W937293

TEE

1шт.

31

R4237558

UNION

1шт.

32

N1241851

ELECTRO/HYD CONTACT

Switch, 5 bar

1шт.

33

Z2036902

CLASP

Clip 3-7 mm

1шт.

34

P2036939

CLASP

Base

1шт.

35

N51946

CLAMP

Clip, Mounting 258 mm

1шт.
