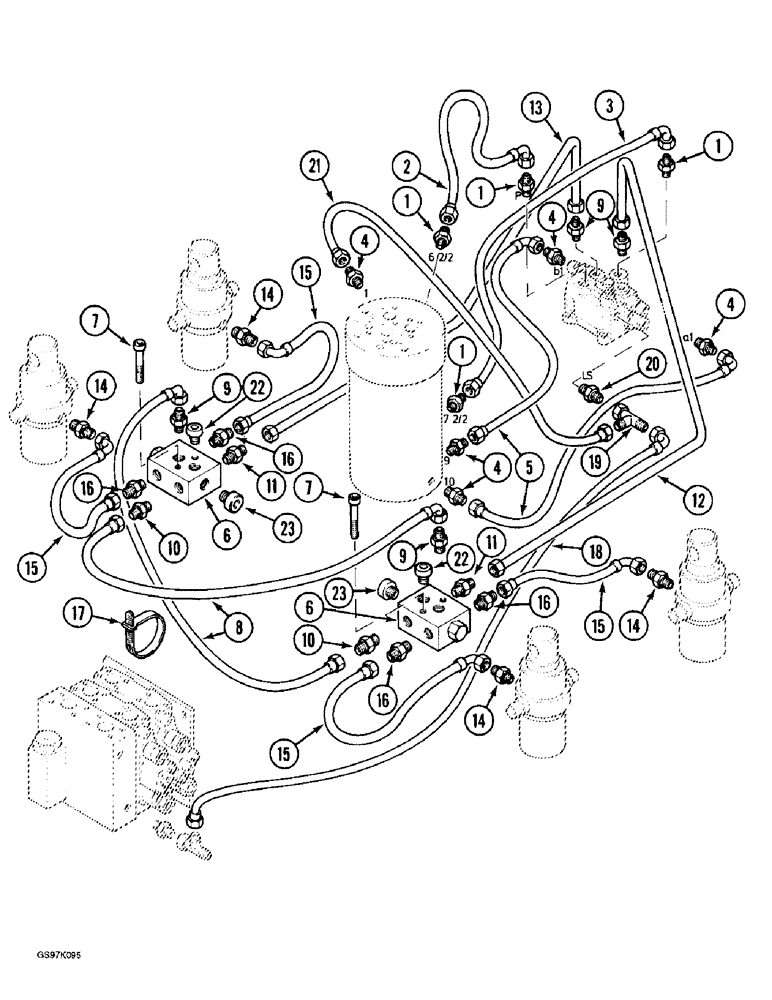

Запчасти Case 888 (7-10) - TURNTABLE LEVELER HYDRAULIC LINES, P.I.N. 106801 AND AFTER (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
P3237533
UNION
ADAPTER ASSEMBLY - straight
4шт.
P1145268
SEAL
O-RING - adapter
1шт.
2
P5931924
HOSE
- pressure, 502 mm (19-3/4 inch) long
1шт.
3
P6531978
HOSE
- return to swivel, 502 mm (19-3/4 inch) long
1шт.
4
P3237530
UNION
ADAPTER ASSEMBLY - straight
5шт.
P7046042
SEAL
O-RING - adapter
1шт.
5
P5431953
HOSE
- pilot, leveler valve to swivel, 400 mm (15-3/4 inch) long
2шт.
6
P5837717
SHIN
VALVE ASSEMBLY - cylinder check control, parts list Fig. 7-26
2шт.
7
P32905
SCREW
BOLT - socket head, 8 mm x 55 mm
4шт.
8
P5431969
HOSE
- cylinder check valve, right-hand side to left-hand side, 1000 mm (39-3/8 inch) long
2шт.
9
P3237583
UNION
ADAPTER ASSEMBLY - straight
4шт.
P1145268
SEAL
O-RING - adapter
1шт.
10
P4837508
UNION
REDUCER ASSEMBLY - straight
2шт.
P2230418
SEAL
O-RING - reducer
1шт.
11
P3237532
UNION
ADAPTER ASSEMBLY - straight
2шт.
P2230418
SEAL
O-RING - reducer
1шт.
12
P8947606
PIPE
TUBE - leveler control valve to check valve, right-hand side
1шт.
13
P8947605
PIPE
TUBE - leveler control valve to check valve, left-hand side
1шт.
14
P4837541
FITTING
VALVE ASSEMBLY - no return, at cylinder
4шт.
P2230418
SEAL
O-RING - adapter
1шт.
15
P7631909
HOSE
- cylinder to check valve, 400 mm (15-3/4 inch) long
4шт.
16
P4237510
UNION
ADAPTER ASSEMBLY - straight
4шт.
P2230418
SEAL
O-RING - adapter
1шт.
17
P51946
CLAMP
STRAP - tie, hoses, 257 mm (10-1/8 inch) long
1шт.
18
P6631967
HOSE
- pressure sensing, 1600 mm (63 inch) long
1шт.
19
P2643351
BLOCK ASSY.
TEE - power sensing hoses
1шт.
20
P3237554
FITTING
ADAPTER ASSEMBLY - straight
1шт.
P7046042
SEAL
O-RING - adapter
1шт.
21
P5431970
HOSE
- pressure sensing, leveler control valve to swivel, 630 mm (24-13/16 inch) long
1шт.
22
P2537413
PLUG
ASSEMBLY - hex socket, 22 mm
2шт.
P1145268
SEAL
O-RING - adapter
1шт.
23
P2537412
PLUG
ASSEMBLY - hex socket, 22 mm
2шт.
P2230418
SEAL
O-RING - reducer
1шт.
Выбрано товаров: 33
