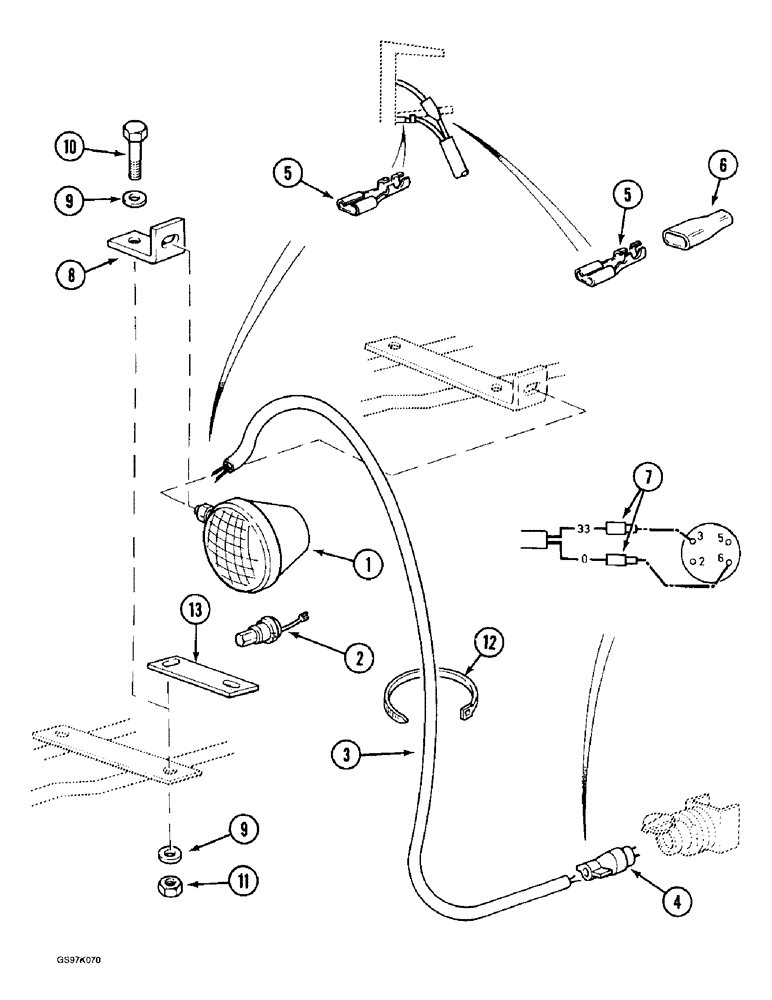

Запчасти Case 888 (4-44) - BOOM CYLINDER LAMP ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

P841727

HEADLIGHT

LAMP - boom cylinder

1шт.

2

P340501

LAMP

BULB - lamp

1шт.

3

REF

INSTRUCTION

HARNESS - boom lamp, 3200 mm (126 inch) long, cut from bulk stock P4565 below

1шт.

4

P40741

CONNECTOR,ELECTRIC

PLUG - boom lamp harness

1шт.

5

P40940

TERMINAL

CLIP - harness

2шт.

6

P41471

LIGHT FAIRING

COVER - wire clip

1шт.

7

P40935

END FITTING

TERMINAL - male, Serial Range: plug-harness

2шт.

8

P5225666

SUPPORT

BRACKET - lamp mounting, if used (Replaces bracket P4825649)

1шт.

9

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.

10

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

1шт.

11

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

12

P51946

CLAMP

STRAP - tie, harness, 257 mm (10-1/8 inch) long

1шт.

13

P3723103

SUPPORT

BRACKET - lamp mounting, if used (Replaces bracket P3523101)

1шт.

P4565

CABLE

- bulk, sold by the meter

1шт.
