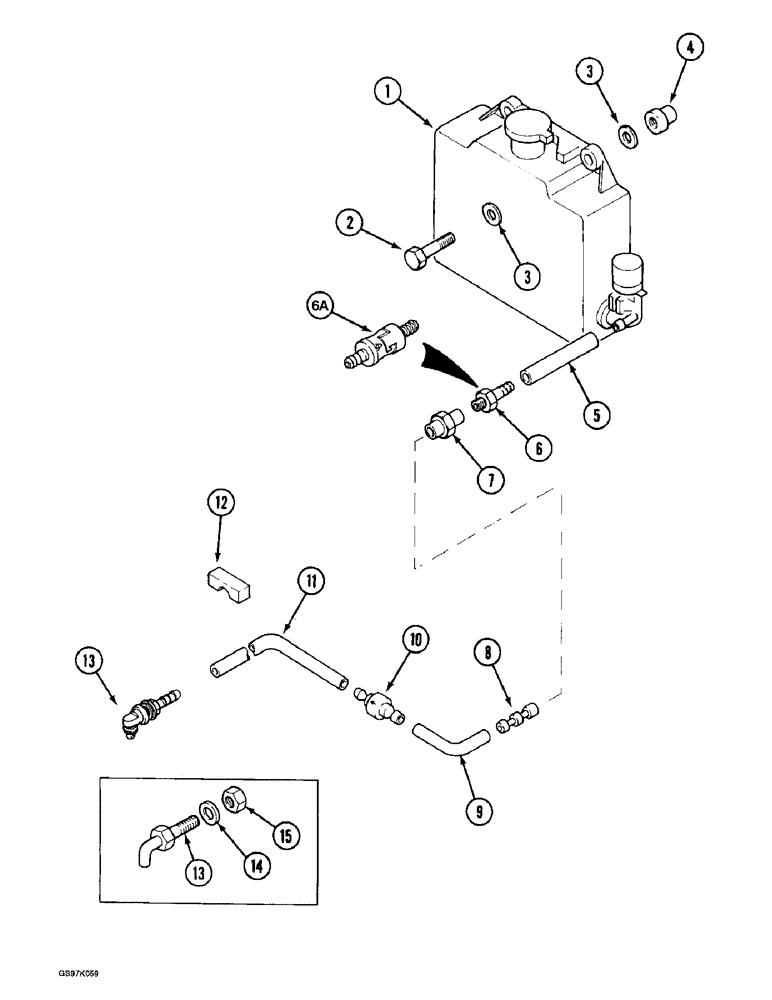

Запчасти Case 888 (4-22) - WINDSHIELD WASHER, P.I.N. 15401 AND AFTER, P.I.N. 106801 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P1241880

RESERVOIR ASSY.

RESERVOIR AND MOTOR - windshield washer

1шт.

2

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

3

P35002

WASHER

- flat, 6 mm

4шт.

4

P834513

NUT

RETAINER - bolt, sleeve type, 6 mm

2шт.

5

REF

INSTRUCTION

HOSE - at reservoir, 150 mm (5-29/32 inch) long, cut from bulk hose P1103643 below

1шт.

6

P3543210

UNION

ADAPTER - hose, barb type, no longer available, order connector P4441476, Ref. 6A and plug P3037444

1шт.

6a

P4441476

FITTING

CONNECTOR - quick, Serial Range: hose-nozzle

1шт.

P3037444

PLASTIC PLUG

PLUG - connector

1шт.

7

P3543209

FITTING

ADAPTER - straight, to barb type adapter

1шт.

8

P3543208

BUSHING

ADAPTER - windshield washer hose

1шт.

9

REF

INSTRUCTION

HOSE - windshield washer, at filter, 500 mm (19-11/16 inch) long, cut from bulk hose P1103643 below

1шт.

10

P3543207

VANEUM GAUGE

FILTER -, Serial Range: hose-nozzle

1шт.

11

REF

INSTRUCTION

HOSE - windshield washer, to nozzle, 3500 mm (137-51/64 inch) long, cut from bulk hose P1103643 below

1шт.

12

P1241413

CLIP,ELECTRICAL

CLIP - washer, Serial Range: hose-cab

2шт.

13

P943210

JET

NOZZLE - windshield washer, if used

1шт.

13

P4143207

JET

NOZZLE - windshield washer, if used (Replaces nozzle P3743271)

1шт.

14

P4528713

WASHER

SPACER - washer nozzle, 19 mm (3/4 inch) thick

1шт.

15

100016

NUT,M10 x 1.5, Cl 8

Washer Nozzle M10, Cl 8

1шт.

P1103643

PIPE

HOSE - bulk, sold by the meter

1шт.
