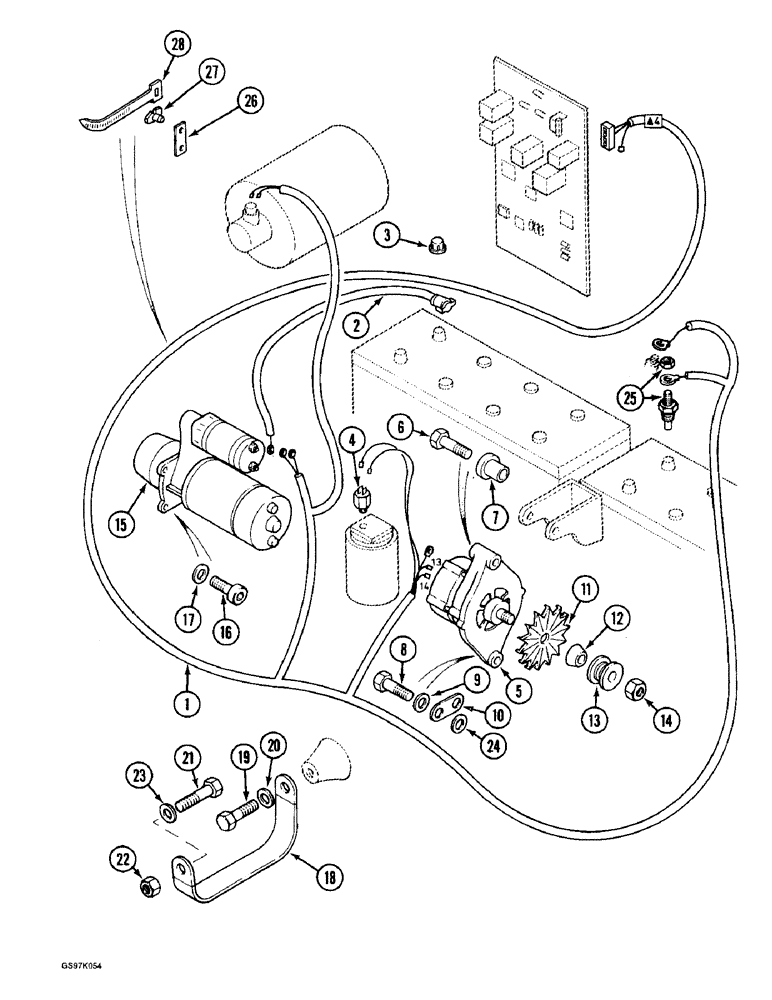

Запчасти Case 888 (4-12) - ENGINE ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
P1352260
HARNESS
- engine wiring, (Replaces harness P9847276), Start Serial: 15493
1шт.
1
P1352261
HARNESS
- engine wiring, (Replaces harness P9547241), Start Serial: 15493
1шт.
2
P9547284
CABLE
ASSEMBLY - positive battery terminal to starter, Includes: Ref. 3
1шт.
5
REF
INSTRUCTION
ALTERNATOR ASSEMBLY - engine electrical, parts list Fig. 4-02
1шт.
7
J902469
SPACER
BUSHING - alernator mounting bolt (Replaces bushing P2728884)
1шт.
10
P4424124
SUPPORT
BRACKET - alternator mounting (Replaces bracket P4524192)
1шт.
When ordering Retainer P/N J903333 or Pulley P/N J903586, you will get (1) Retainer P/N J908563 and (1) Pulley J908560.
1шт.
When ordering Retainer P/N J903333 or Pulley P/N J903586, you will get (1) Retainer P/N J908563 and (1) Pulley J908560.
1шт.
15
REF
INSTRUCTION
STARTER ASSEMBLY - engine electrical, parts list Figs. 4-04 and 4-06
1шт.
