(4-10) - TURNTABLE ELECTRICAL HARNESS, P.I.N. 15554 AND AFTER, P.I.N. 106801 AND AFTER

Запчасти Case 888 (4-10) - TURNTABLE ELECTRICAL HARNESS, P.I.N. 15554 AND AFTER, P.I.N. 106801 AND AFTER (04) - ELECTRICAL SYSTEMS

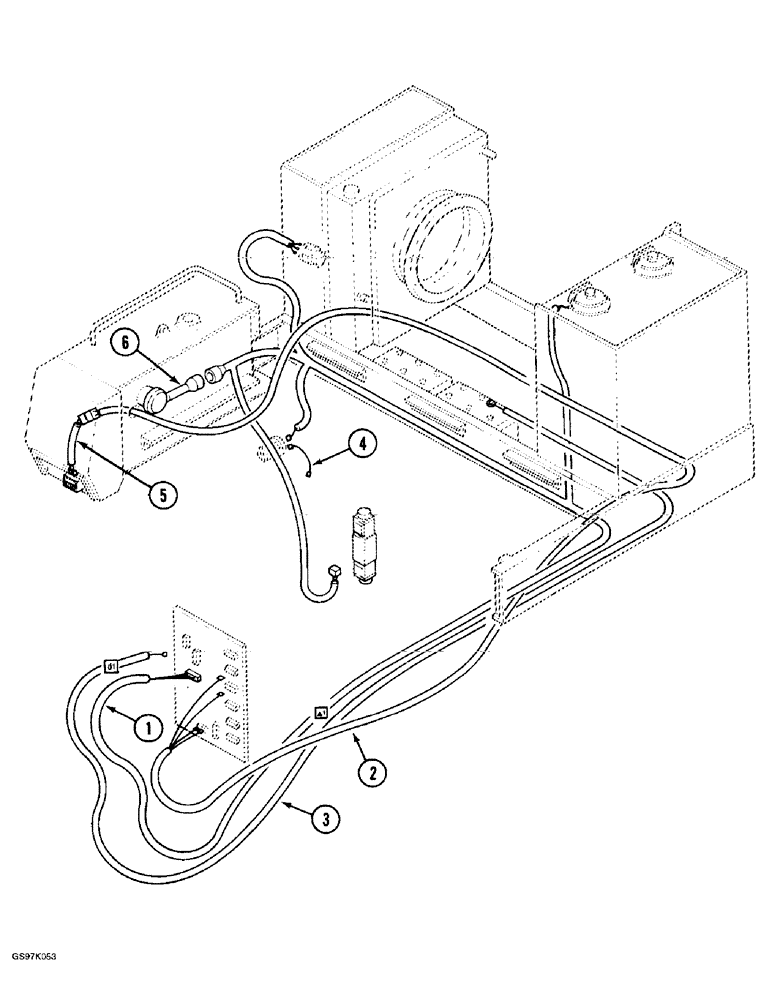

Схема запчастей Case 888 - (4-10) - TURNTABLE ELECTRICAL HARNESS, P.I.N. 15554 AND AFTER, P.I.N. 106801 AND AFTER (04) - ELECTRICAL SYSTEMS
4
2
5
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P1352246

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve

1шт.

2

P1352208

CABLE

HARNESS - circuit board to front work lamp

1шт.

3

P1352213

CABLE

HARNESS - electrical at circuit board

1шт.

4

P8547258

ELECTRICAL WIRE

WIRE - socket ground

1шт.

5

P1352204

CABLE

HARNESS - front work lamp, at door

1шт.

6

P1352244

HARNESS

- electrical fuel gauge to main harness, if used

1шт.

6

P1352245

HARNESS

- electrical fuel gauge to main harness, if used

1шт.
