(2-16) - RADIATOR AND OIL COOLER, P.I.N. 15647 AND AFTER, P.I.N. 106813 AND AFTER

Запчасти Case 888 (2-16) - RADIATOR AND OIL COOLER, P.I.N. 15647 AND AFTER, P.I.N. 106813 AND AFTER (02) - ENGINE

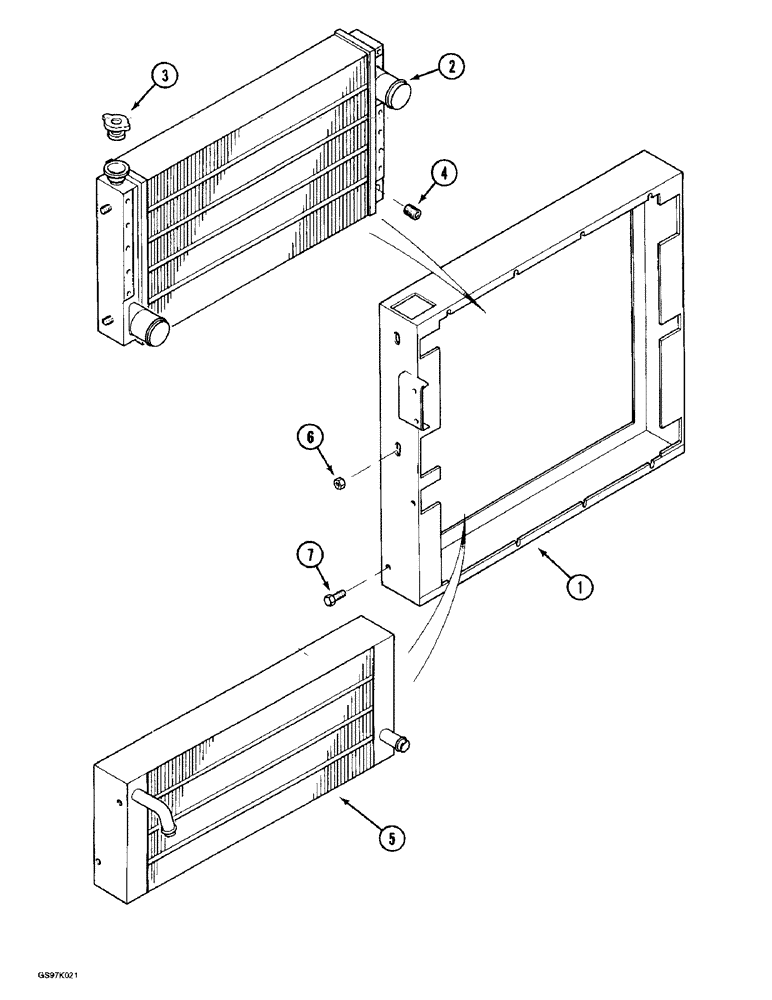

Схема запчастей Case 888 - (2-16) - RADIATOR AND OIL COOLER, P.I.N. 15647 AND AFTER, P.I.N. 106813 AND AFTER (02) - ENGINE
5
1
3
6
7
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P4143219

RADIATOR

ASSEMBLY - engine and hydraulic oil cooling, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

SUPPORT - radiator and oil cooler, order radiator assembly

1шт.

2

P4143213

RADIATOR

- engine water cooling

1шт.

3

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi (Replaces cap P2537495)

1шт.

4

P1137424

PLUG

- 1/4 inch NPT, radiator drain

1шт.

5

REF

INSTRUCTION

COOLER - oil, hydraulic

1шт.

6

P34113

NUT

- hex, 8 mm

4шт.

7

P533813

SCREW

BOLT - hex, 8 mm x 16 mm

4шт.
