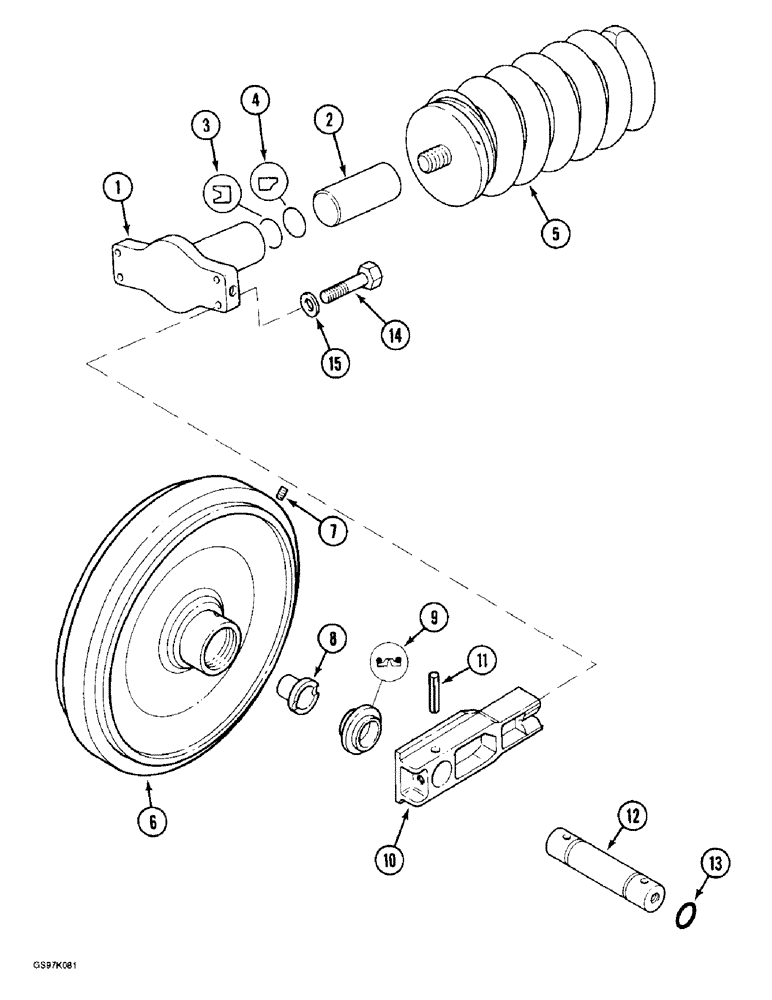

Запчасти Case 888 (5-22) - TRACK IDLER & ADJUSTMENT CYL., INTERTRAC IDENTIFICATION, P.I.N. 15629 & AFTER, P.I.N. 106808 & AFTER (11) - TRACKS/STEERING

P8846222

ASSEMBLY

CYLINDER ASSEMBLY - track adjustment, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - track adjustment, includes bracket, order cylinder assembly

1шт.

2

P8846223

PISTON

- adjustment cylinder

1шт.

3

P8846092

SEAL

- piston (Replaces seal P8846075)

1шт.

4

P151323

WIPER SEAL

SEAL - piston

1шт.

5

P8846221

SHOCK ABSORBER

SPRING - track, shock absorber

2шт.

P2242341

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref. 6 - 13

2шт.

6

NSS

NOT SOLD SEPARAT

WHEEL - idler, order idler assembly P2242341

2шт.

7

P3337461

PLUG

- filler, idler wheel

1шт.

8

P1528667

BUSHING

- idler wheel

2шт.

9

P9346013

SET OF GASKET

SEAL - oil, idler wheel

2шт.

10

P5028281

SUPPORT

BRACKET - idler wheel

2шт.

11

P435736

SPLIT PIN/SAFETY PIN

PIN - roll, idler, Serial Range: shaft-bracket

2шт.

12

P6027817

SHAFT

- idler wheel (Replaces shaft P5327879)

1шт.

13

P2230439

O-RING

- idler shaft

2шт.

14

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

- hex, 16 - 2 x 60 mm, class 10.9 (Replaces bolt P133805)

2шт.

15

P1945390

WASHER

- flat, 16 mm

4шт.
