(5-12) - TRACK FRAME TUBING GUARDS

Запчасти Case 888 (5-12) - TRACK FRAME TUBING GUARDS (11) - TRACKS/STEERING

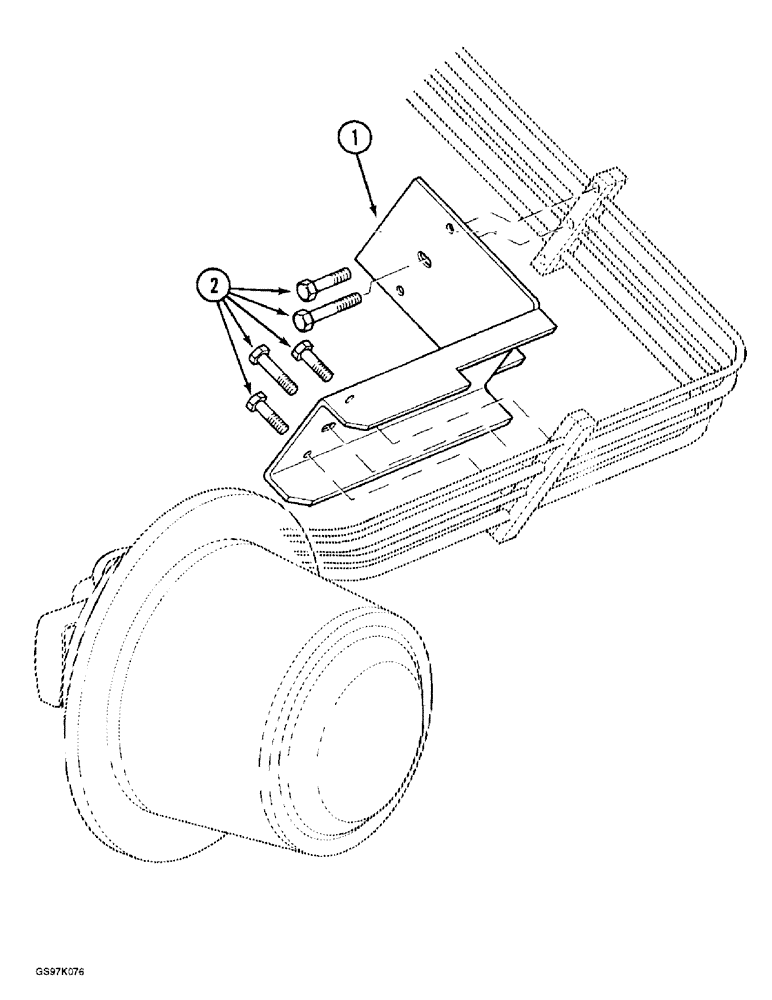

Схема запчастей Case 888 - (5-12) - TRACK FRAME TUBING GUARDS (11) - TRACKS/STEERING
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P926477

PROTECTOR

GUARD - drive motor tubing, left-hand side

1шт.

1

P926476

PROTECTOR

GUARD - drive motor tubing, right-hand side

1шт.

2

REF

INSTRUCTION

BOLT - hex, see Figure 7-8

8шт.

Выбрано товаров: 3
