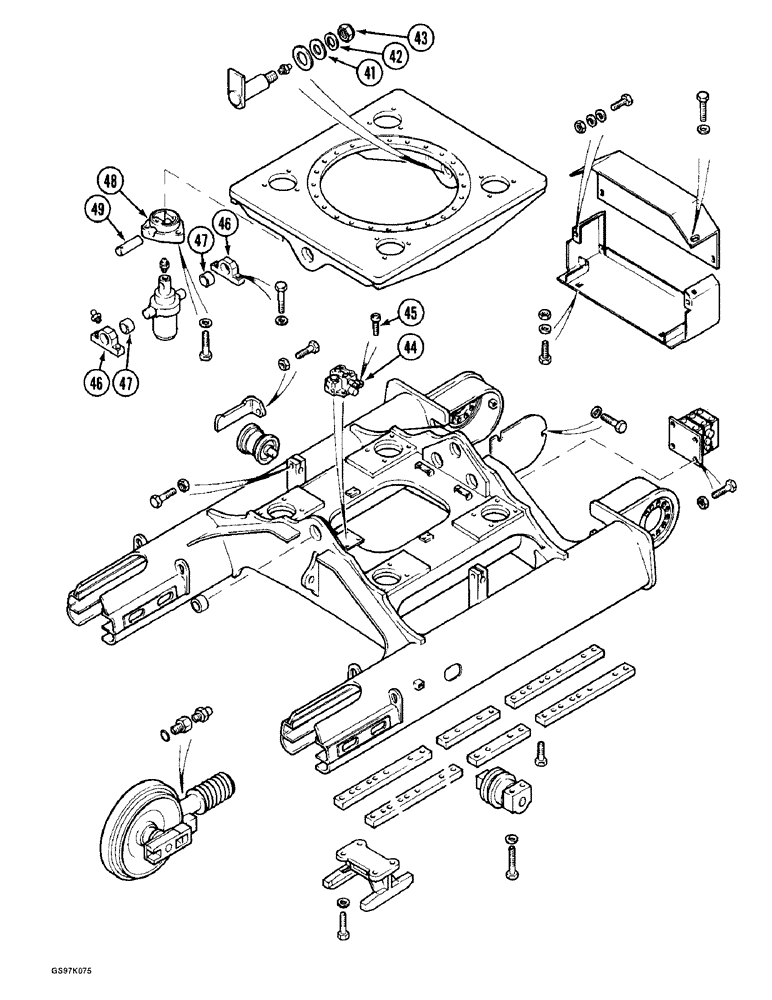

Запчасти Case 888 (5-10) - TURNTABLE LEVELER TRACK FRAME AND UNDERCARRIAGE, P.I.N. 106803 AND AFTER (CONT) (11) - TRACKS/STEERING

41

P745319

WASHER

- special, leveler, Serial Range: table-undercarriage

1шт.

42

P1145582

WASHER

- spacer, 56 mm x 125 mm x 10 mm

2шт.

43

P1334516

SAFETY NUT

NUT - hex, self-locking, 52 mm

2шт.

44

REF

INSTRUCTION

VALVE ASSEMBLY - control, leveler, parts list Fig. 8F-12

1шт.

45

P32932

SCREW

BOLT - hex socket, 10 mm x 25 mm

4шт.

46

P1639502

CYLINDER END CAP

BRACKET ASSEMBLY - leveler cylinder to undercarriage, Includes: Ref. 47

8шт.

47

P5728725

BUSHING

- bracket at cylinder

1шт.

48

P1639503

CYLINDER END CAP

BRACKET -, Serial Range: cylinder-leveler

4шт.

49

P1827525

PIN

- cylinder, Serial Range: rod-bracket

4шт.
