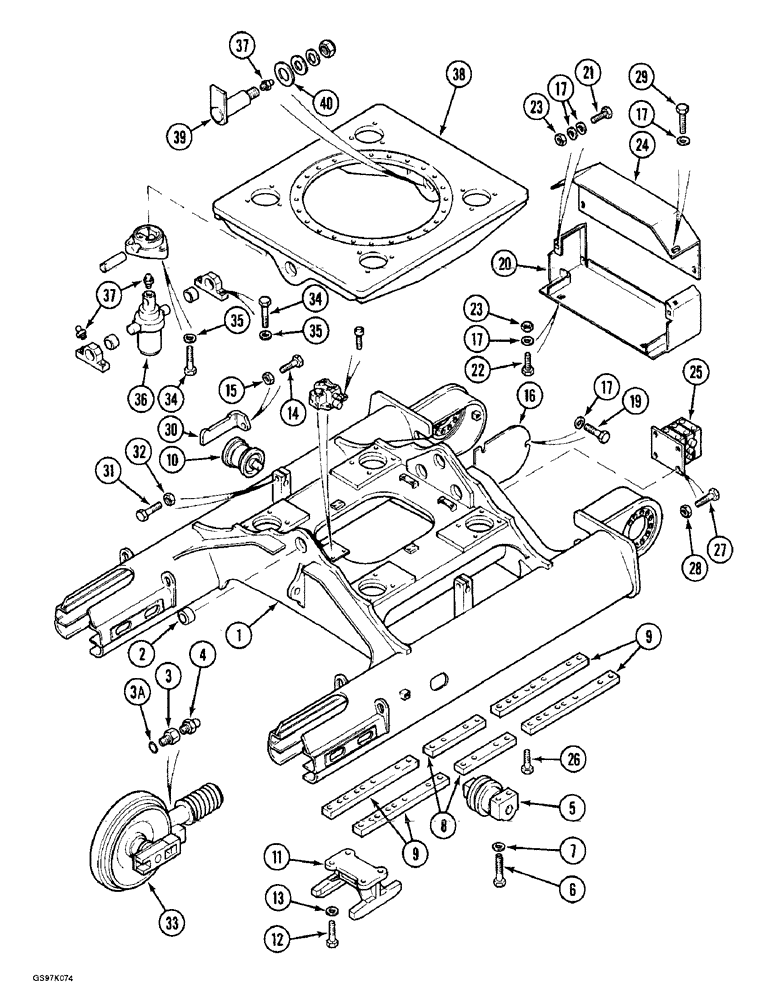

Запчасти Case 888 (5-08) - TURNTABLE LEVELER TRACK FRAME AND UNDERCARRIAGE, P.I.N. 106803 AND AFTER (11) - TRACKS/STEERING

1

P255523

FRAME

AND UNDERCARRIAGE ASSEMBLY - track, Includes: Ref. 2

12шт.

2

P4528770

BUSHING

- undercarriage

2шт.

3

P2643387

ADAPTER

ASSEMBLY - grease fitting to track adjuster, Includes: Ref. 3A - 4

2шт.

3a

P1145268

SEAL

- adapter

2шт.

4

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

5

REF

INSTRUCTION

ROLLER - track, lower, see Figure 5-24

14шт.

6

828-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

- hex, 16 - 2.0 x 110 mm, class 10.9 (Replaces bolt P1133890)

56шт.

7

P4628731

WASHER

SPACER - bolt, 6 mm thick

56шт.

8

P4620374

PLATE,SMALL SQUARE

BAR - retainer, roller to frame, long

4шт.

9

P4820361

PLATE,SMALL SQUARE

BAR - retainer, roller to frame, short

8шт.

10

P2242301

ROLLER, TRACK

ROLLER ASSEMBLY - track, upper (Replaces roller assembly P1538577)

2шт.

P8846056

SET OF GASKET

SEAL - track roller

1шт.

11

P155561

GUIDE

- track, front of undercarriage

2шт.

12

P233841

SCREW

BOLT - hex, 16 mm x 70 mm

8шт.

13

P4628731

WASHER

SPACER - bolt, 6 mm thick

8шт.

14

P133835

SCREW

BOLT - hex, 20 mm x 100 mm

2шт.

15

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

2шт.

16

P2822568

COWL

GUARD - drive motor, inner

2шт.

17

P3528795

WASHER

SPACER - bolt, 7 mm thick

16шт.

19

P933818

SCREW

BOLT - hex, 10 mm x 40 mm, full thread

6шт.

20

P255526

PROTECTOR

GUARD - drive control valve

1шт.

21

P833802

SCREW

BOLT - hex, 10 mm x 50 mm, full thread

2шт.

22

P233832

SCREW

BOLT - hex, 10 mm x 80 mm, full thread

2шт.

23

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

24

P7428290

PROTECTOR

COVER - drive control valve guard, upper

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - drive control, parts list Fig. 7-12

1шт.

26

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

(Replaces bolt P133802) Hex, M16 x 40, 8.8

8шт.

27

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

4шт.

28

P34596

LOCK NUT

NUT - hex, self-locking, 12 mm

4шт.

29

P833802

SCREW

BOLT - hex, 10 mm x 50 mm, full thread (Replaces bolt P3333033)

4шт.

30

P2326789

STEP

- operator assist

2шт.

31

P833815

SCREW

BOLT - upper track roller, 24 mm x 120 mm

2шт.

32

P134566

SAFETY NUT

NUT - hex, self-locking, 24 mm

1шт.

33

REF

INSTRUCTION

CYLINDER - track idler adjustment, undercarriage, see Figs. 5-18 - 5-22

2шт.

34

P1633855

SCREW

BOLT - hex, 20 mm - 1.5 x 70 mm

28шт.

35

P4328747

WASHER

SPACER - bolt, 14 mm thick

28шт.

36

P8246776

CYLINDER ASSY.

CYLINDER ASSEMBLY - leveler, parts list Fig. 7-24

4шт.

37

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

14шт.

38

P7628283

SUPPORT

LEVELER - turntable

1шт.

39

P2930994

HEADED PIN

PIN - leveler, Serial Range: table-undercarriage

2шт.

40

P1145581

WASHER

- spacer, 94 mm x 160 mm x 10 mm Continued on Fig. 5-10

2шт.
