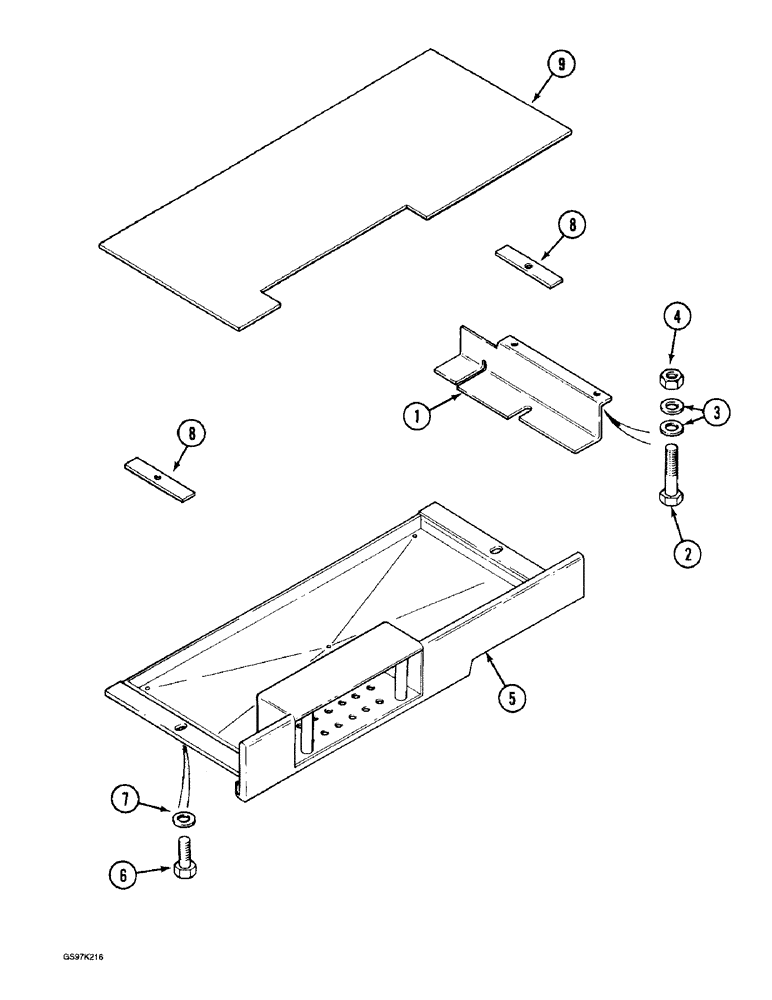

Запчасти Case 888 (9D-10) - TURNTABLE LOWER ACCESS COVER (09) - CHASSIS

1

P3126328

HOOD

BRACKET - support, access cover

1шт.

2

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

2шт.

3

P4328796

WASHER

SPACER - bolt, 7 mm thick

4шт.

4

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

5

P7128272

SPOOL

COVER - access, lower turntable

1шт.

6

P933890

SCREW

BOLT - hex, 10 mm x 30 mm (Replaces bolt P33827)

2шт.

7

P4328796

WASHER

SPACER - bolt, 7 mm thick

2шт.

8

P6522793

PLATE

RETAINER - access cover

2шт.

9

P4441460

FOAM

INSULATION - cab floor (Replaces insulation P4241458)

1шт.
