(9C-08) - VALVE PANEL COVER

Запчасти Case 888 (9C-08) - VALVE PANEL COVER (09) - CHASSIS

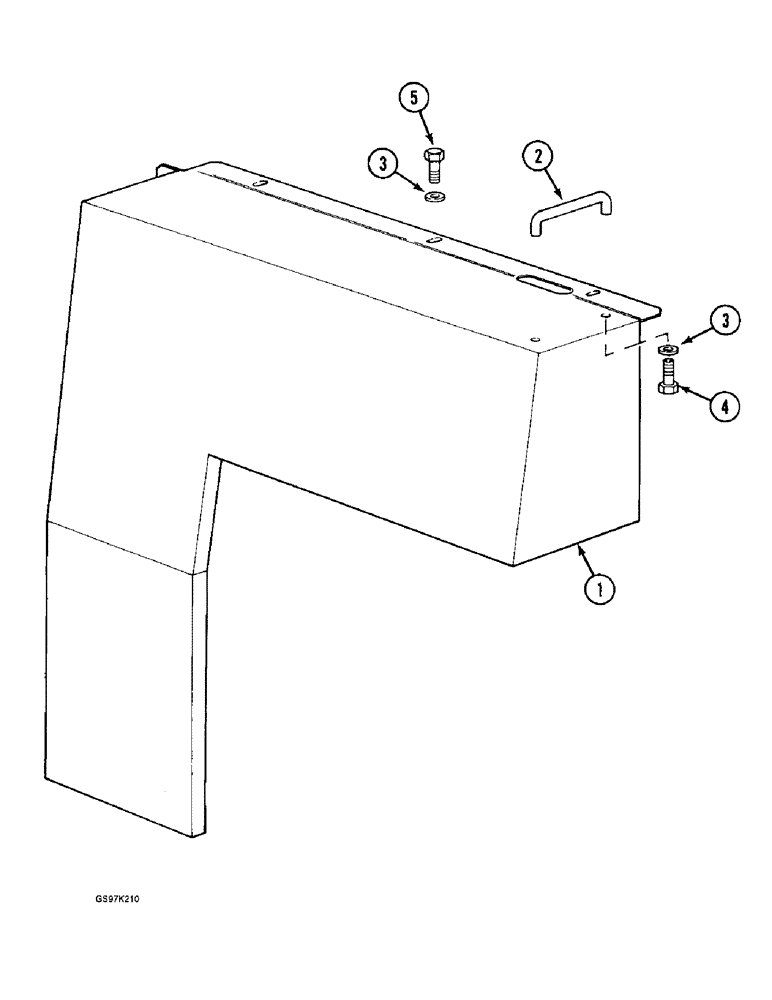

Схема запчастей Case 888 - (9C-08) - VALVE PANEL COVER (09) - CHASSIS
3
5
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P3126334

COWL

PANEL - access and cover, valve

1шт.

1

P3626322

COWL

PANEL - access and cover, valve

1шт.

2

P1352041

HANDLE

- cover lift

2шт.

3

P3528794

WASHER

SPACER - bolt, 6 mm thick

9шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

5шт.

Выбрано товаров: 6
