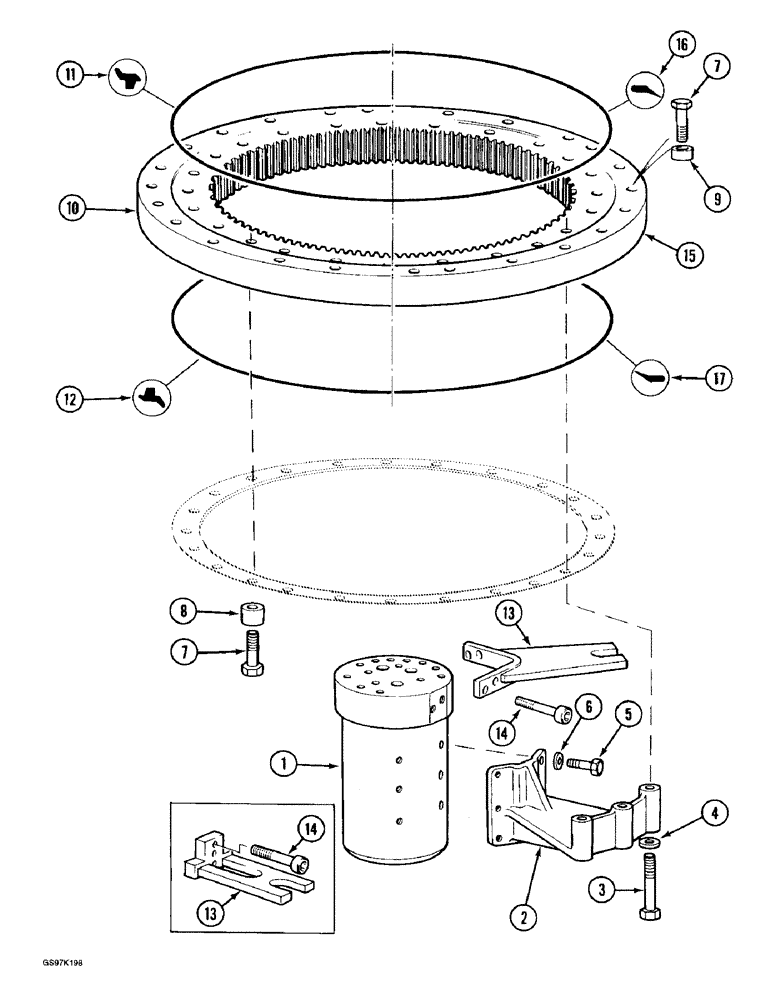

Запчасти Case 888 (9A-02) - TURNTABLE BEARING (09) - CHASSIS

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, see Figs. 8C-18 - 8C-22

1шт.

2

P2346172

SUPPORT

BRACKET - mounting, swivel, cast type

1шт.

3

P1633867

SCREW

BOLT - hex, 20 mm x 180 mm, grade 10.9

3шт.

4

P5428789

WASHER

SPACER - bolt, 7 mm thick

3шт.

5

P933819

SCREW

BOLT - hex, 12 mm x 55 mm

6шт.

6

P4328731

WASHER

SPACER - bolt, 24 mm thick

6шт.

7

P1633877

SCREW

BOLT - hex, 20 mm x 100 mm, grade 10.9

41шт.

8

P4328747

WASHER

SPACER - bolt, 14 mm thick

21шт.

9

P4528718

WASHER

SPACER - bolt, 40 mm thick

20шт.

P739989

SLEWING RING

BEARING ASSEMBLY - turntable, no longer available, order bearing assembly P2239914 below, Serial Range: 15401-15482

1шт.

P2239914

SLEWING RING

BEARING ASSEMBLY - turntable, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING - turntable, order bearing assembly

1шт.

11

P8046068

SEAL

- turntable bearing, upper

1шт.

Cut to length as needed and apply adhesive P1003576 to ends.

1шт.

12

P8046069

SEAL

- turntable bearing, lower

1шт.

Cut to length as needed and apply adhesive P1003576 to ends.

1шт.

13

P7428222

STOP LOCK

BRACKET - swivel lock, if used

1шт.

See Fig. 9A-04 for bolt to turntable.

1шт.

13

P7628292

STOP LOCK

BRACKET - swivel lock, if used

1шт.

See Fig. 9A-04 for bolt to turntable.

1шт.

14

P1232971

SCREW

BOLT - hex socket, 12 mm x 30 mm, grade 10.9

3-4шт.

P739989

SLEWING RING

BEARING ASSEMBLY - turntable, no longer available, order bearing assembly P2239914 below, Serial Range: 15401-15482

1шт.

P2239914

SLEWING RING

BEARING ASSEMBLY - turntable, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - turntable, order bearing assembly

1шт.

16

P9646025

SEAL

- turntable bearing, upper

1шт.

Cut to length as needed and apply adhesive P1003576 to ends.

1шт.

17

P9646025

SEAL

- turntable bearing, lower

1шт.

Cut to length as needed and apply adhesive P1003576 to ends.

1шт.
